CO2 Laser Etcher (XQ7280)

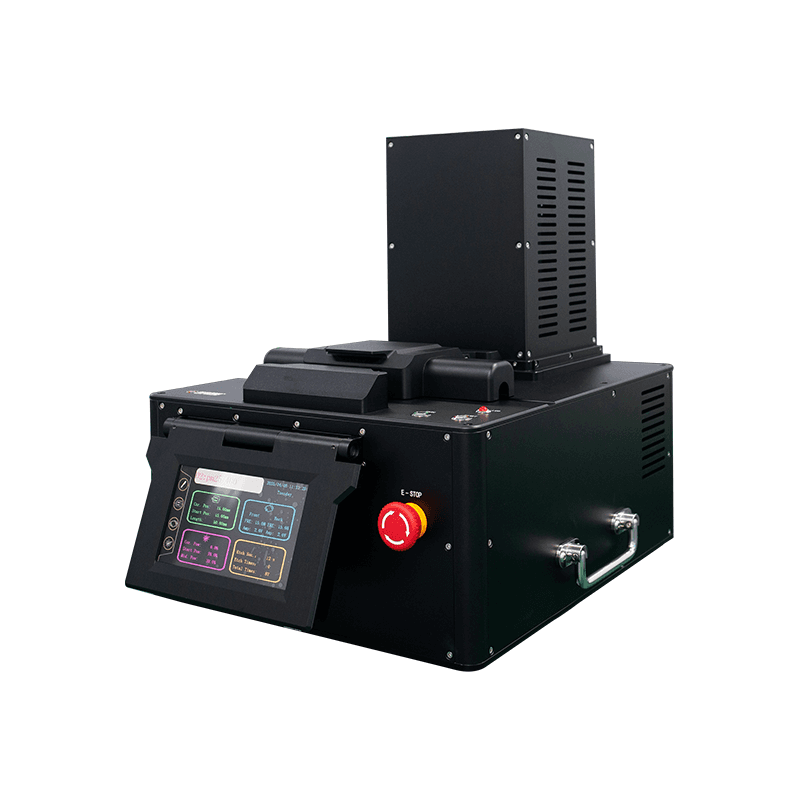

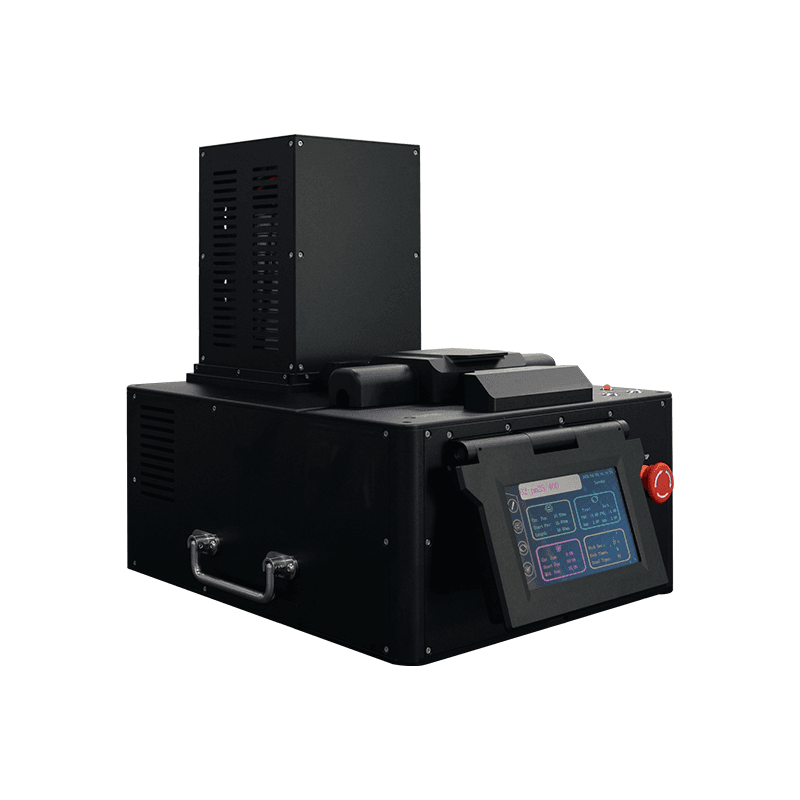

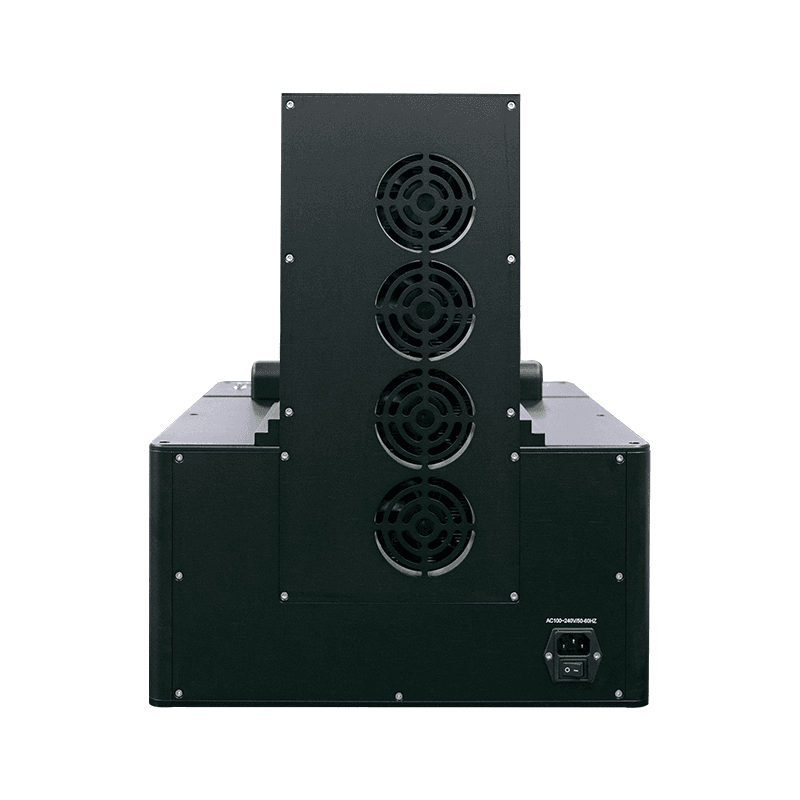

XQ7280 is a CO2 laser etcher with CO2 laser as the heat source designed independently by OSCOM Technology. The etcher can etch the fiber to strip the residual pump light and reflected light in the cladding, protecting optical devices in the optical path effectively. Compared with chemical corrosion strippers, this laser etching product provides higher fiber strength, safer production process, and is more environmentally friendly.

Key Features

  • Program control for automatic etching
  • Galvanometer control for fast etching
  • Clean & environment friendly
  • Stripping efficiency (> 20dB)

Applications

  • Fabrication of cladding optical power stripper
Ask Technical Question

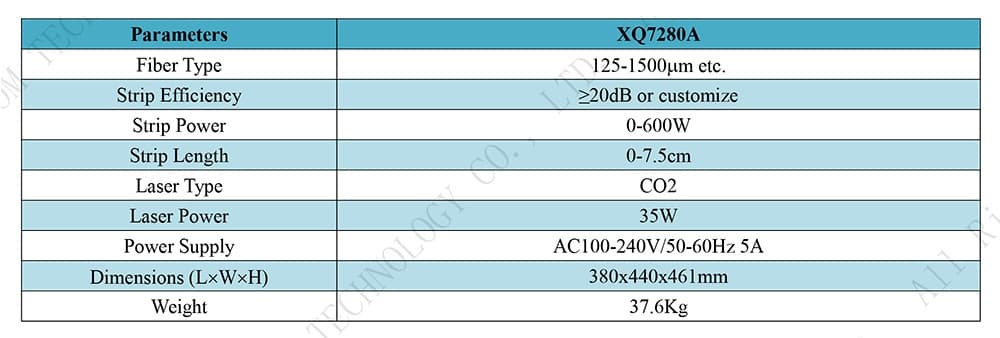

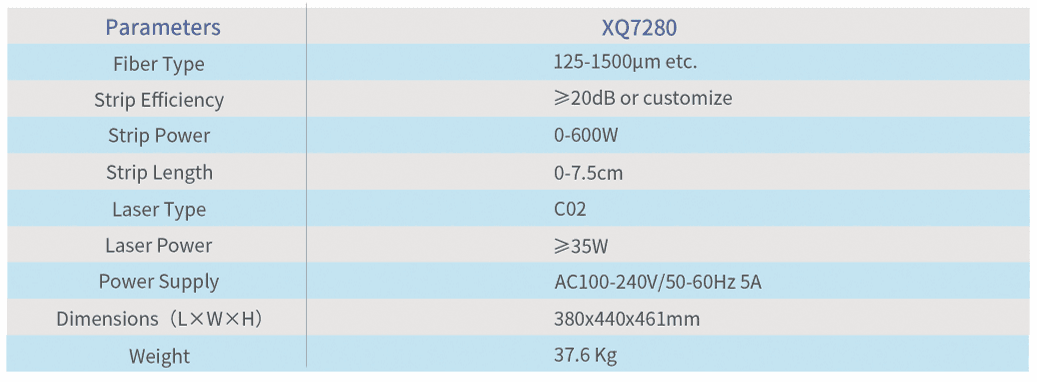

Technical Specifications

Fiber Type125–1500μm etc.
Strip Efficiency≥20dB or customize
Strip Power0–600W
Strip Length0–7.5cm
Laser TypeCO2
Laser Power≥35W
Power SupplyAC100–240V / 50–60Hz 5A
Dimensions (L×W×H)380×440×461mm
Weight37.6 Kg
