Fiber Tapering Equipment
Welcome to our Fiber Tapering Equipment section. Discover high-precision fiber tapering systems engineered for the manufacturing of fiber couplers, pump combiners, mode field adapters, fused fiber devices, and specialty photonic components. These systems deliver exceptional control, repeatability, and process stability for both research and production environments.
Vertical Graphite Fiber Taper (XQ7190D)
XQ7190D is a vertical graphite fiber taper with U-shaped heated graphite filament as heat source, designed independently by OSCOM Technology. It mainly used for manufacturing ultra-high-power optical combiner and can taper low melting point fiber, quartz fiber, special fiber, glass tube, quartz rod, etc. XQ7190D is equipped with automatic fiber tapering system — the automatic tapering and cone area scan will be accomplished after inputting fiber and tapering diameters.
Graphite Fiber Taper (XQ7190)
XQ7190 is a graphite fiber taper with U-shaped heated graphite filament as heat source, designed independently by OSCOM Technology. It mainly used for manufacturing ultra-high-power optical combiner and can taper low melting point fiber, quartz fiber, special fiber, glass tube, quartz rod, etc. Equipped with automatic fiber tapering system, the automatic tapering and cone area scan will be accomplished after inputting fiber and tapering diameters.

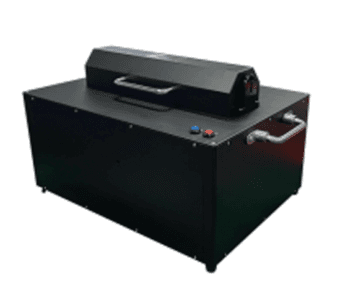

Small Graphite Fiber Taper (XQ7190B)
XQ7190B is a small graphite fiber taper with U-shaped heated graphite filament as heat source which is designed independently by OSCOM Technology. It mainly used for manufacturing ultra high power optical combiner and it can taper low melting point fiber, quartz fiber, special fiber, glass tube, quartz rod, etc. XQ7190B is equipped with automatic fiber tapering system,the automatic tapering and cone area scan will be accomplished after inputting fiber and tapering diameters which greatly improve the success rate of tapering.
Multi-mode Fiber Taper (XQ7180)
XQ7180 is used mainly for manufacturing signal pump optical fiber combiners and special cone-shaped fiber rods including higher power 3x1,4x1,(6+1)x1,7x1, etc. Its main feature is lengthening the tapering lead screw movement length (200-500mm), it is designed with unilateral /reverse/same direction /Conflating tapering mode of fiber holders which can make uniform and accelerated/decelerated movement,equipped with special fiber holders and water-cooled heaters, high-definition measurement CCD microscope, large diameter on-line cleaver and on-line tension testing function, can perfectly achieve the production of a variety of specifications of optical combiners. XQ7180 is stable, reliable, easy to use and can increase or decrease functions according to the customers' needs.
Long Lead Screw Fiber Taper (XQ7170)
XQ7170 is used mainly for manufacturing high power (N+1)1/N1 optical fiber combiners and special cone-shaped fiber bundles. Its main feature is lengthening the tapering movement length (200-500mm) and it is equipped with special optical fiber holder and heater, very suitable for mass production and manufacturing of high power fiber combiners. XQ7170 is stable , reliable and easy to use.
Optical Combiner Fiber Taper (XQ7140)
XQ7140 is used mainly for manufacturing high and low power optical fiber combiner, including (1+1)x1 side-pump, (2+1)x1, (6+1)x1, 7x1 end-pump ,etc. It is fit greatly for the usage habits of users and very suit for mass production and manufacturing of high and low power optical fiber combiner. XQ7140 is Stable , reliable and easy to use.

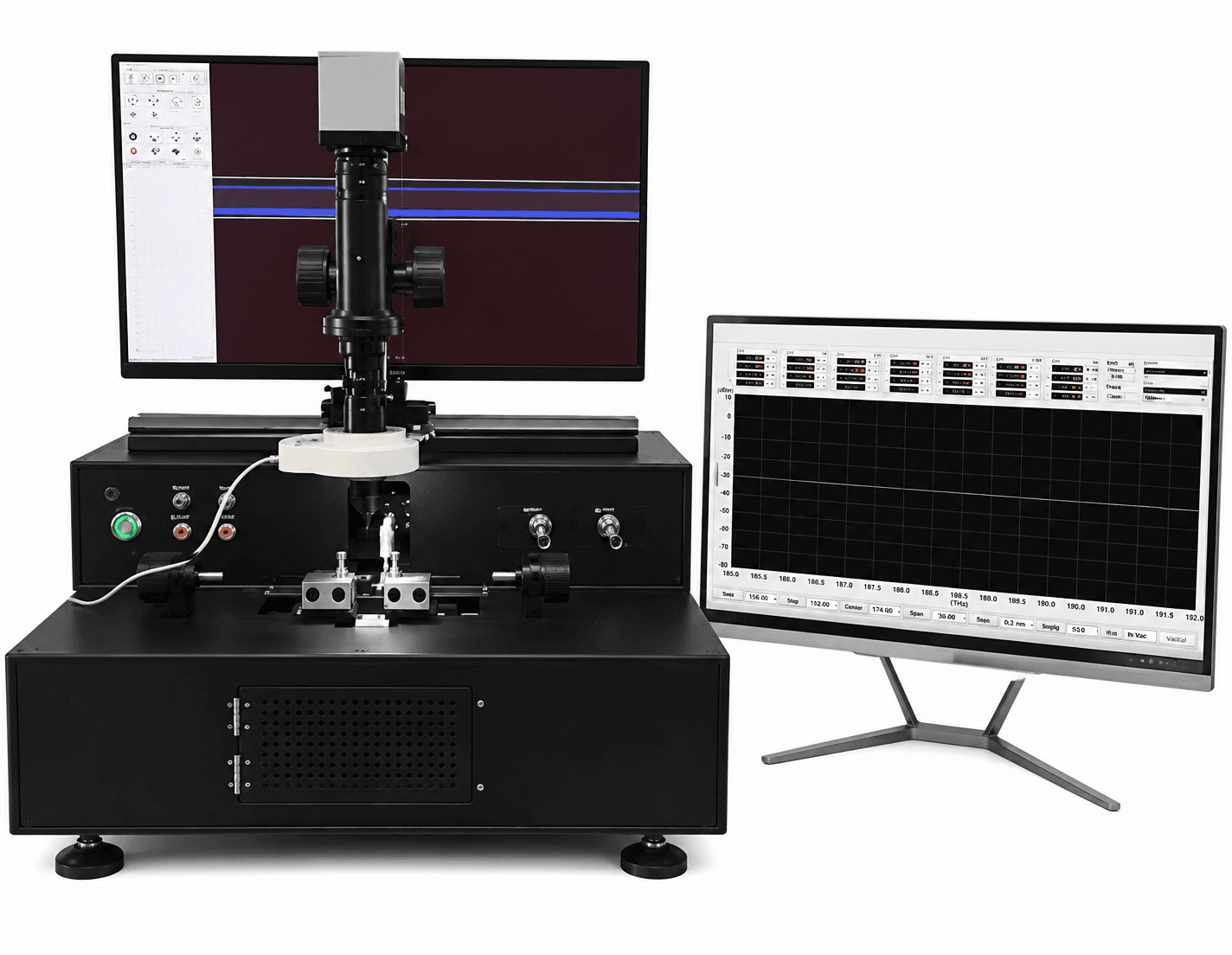

Polarization Maintaining Coupler Fiber Taper (XQ7130)
XQ7130 is used mainly for making polarization maintaining 12/22/13/33/WDM optical fiber splitter, including flexible adjustment of various splitting ratio and wavelength. XQ7130 adopts special method to align panda eyes of PM fiber to realize the manufacturing of high extinction ratio devices, integrates extinction ratio testing system to improve further the production efficiency. XQ7130 is stable , reliable and easy to use.

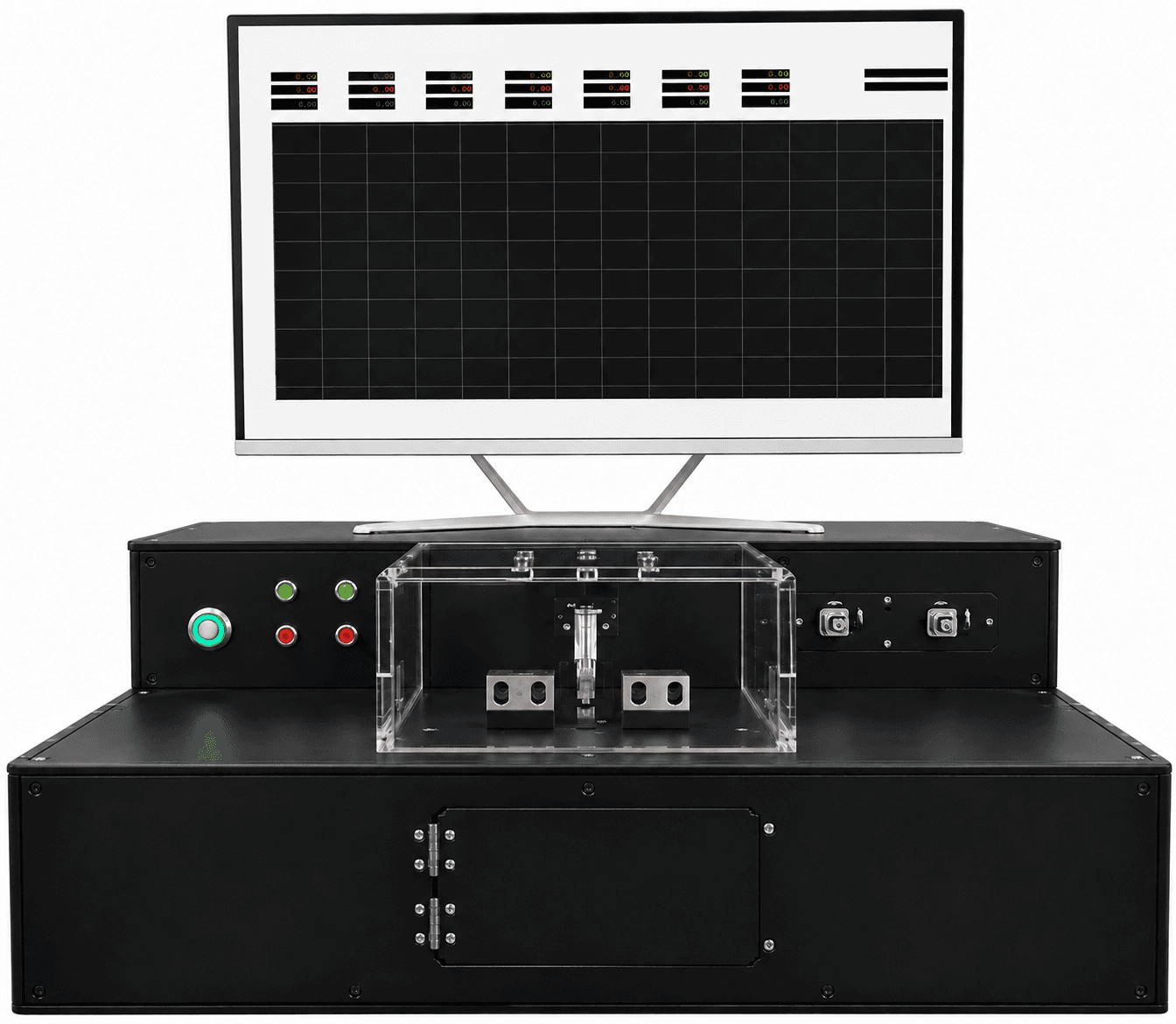

Coupler Fiber Taper (XQ7110)
XQ7110 series taper are mainly used for making conventional 1x2/2x2/1x3/1x4 and other optical fiber splitter and WDM wavelength division multiplexer, including SSC, WBC, DWC, TWC devices of various optical splitting ratio and 980/1550WDM, 1310/1550WDM, 850/1310nm multi-mode devices ,etc.XQ7110 is multifunctional and has high compatibility which is very suitable for batch manufacturing of various tapering devices.
Micro-nano Fiber Taper (XQ71B0)
XQ71B0 is used mainly for making micro-nano fiber in the field of optical fiber sensing, which utilize high-precision lead screw, guide rail and other core components to ensure the tapering accuracy of micro-nano fiber.The cone diameter of tapering parameters can be less than 1um and cone length can be adjusted from 1 to 10cm. It is very suitable for scientific research of universities and other fields. XQ71B0 is stable , reliable and easy to use.

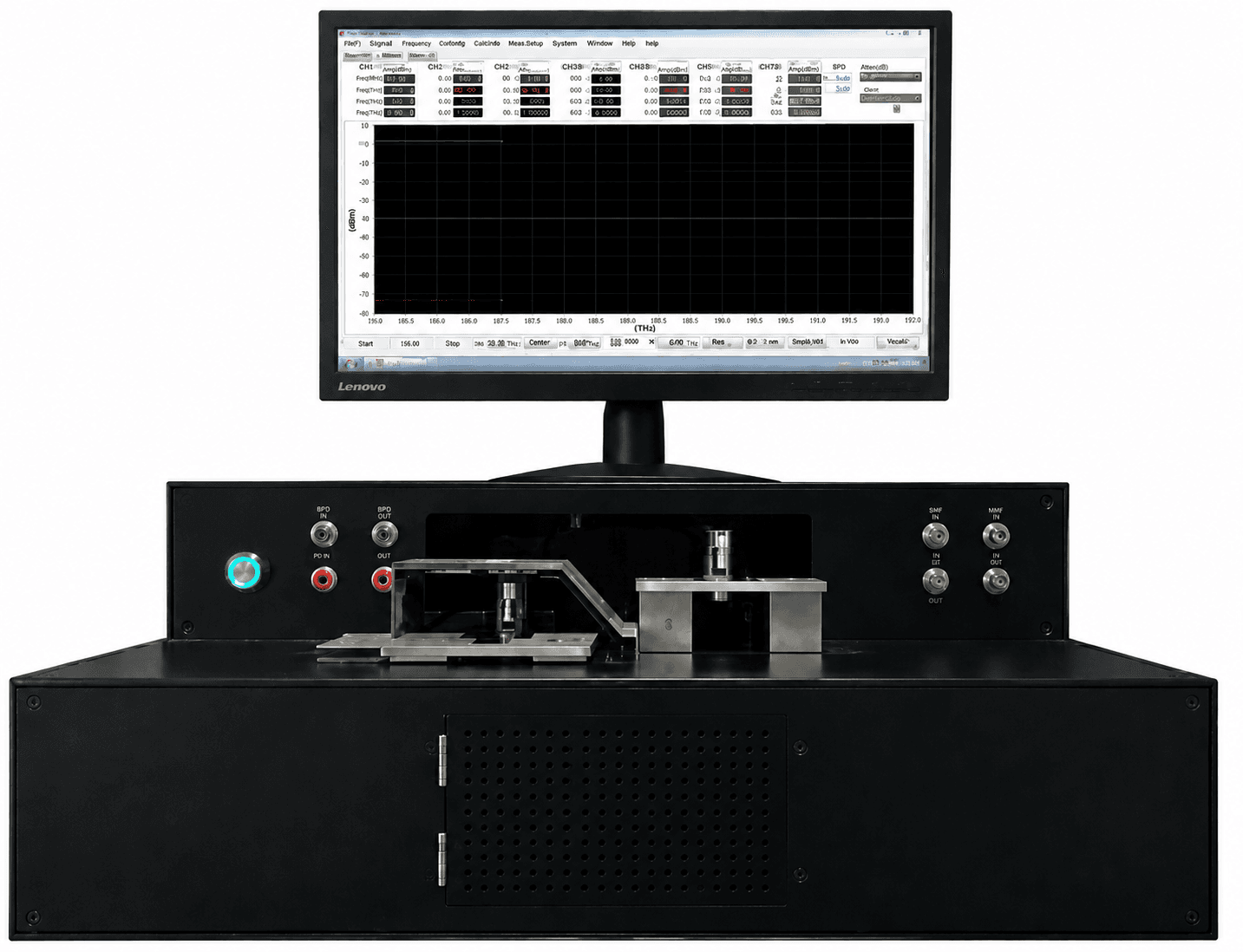

TEC Fiber Beam Expander (XQ71CO)
XQ71C0 is used mainly for expanding the core of various types of fibers. Utilizing single/double-operating position to expand/fire simultaneously , the corresponding core expanding process parameters can be designed according to different optical fibers, and the firing flow and firing time can be set with the software. XQ71C0 is stable , reliable, easy to use and has high expanding efficiency.

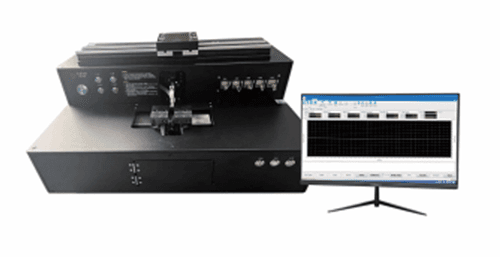

Hydrogen-oxygen Flame Coupler Fiber Taper (XQ7110B)
XQ7110B is based on the old coupler fiber taper, the hardware structure,circuit structure, software system of a new upgrade, improve the stability and reliability of the equipment.The taper are mainly used for making conventional 1x2/2x2/1x3/1x4 and other fiber splitter and WDM wavelength division multiplexer, including SSC, WBC, DWC, TWC devices of various optical splitting ratio and 980/1550WDM, 1310/1550WDM, 850/1310nm multi-mode devices ,etc.XQ7110B is multifunctional and has high compatibility which is very suitable for batch manufacturing of various tapering devices.
