Fiber Tapering Equipment

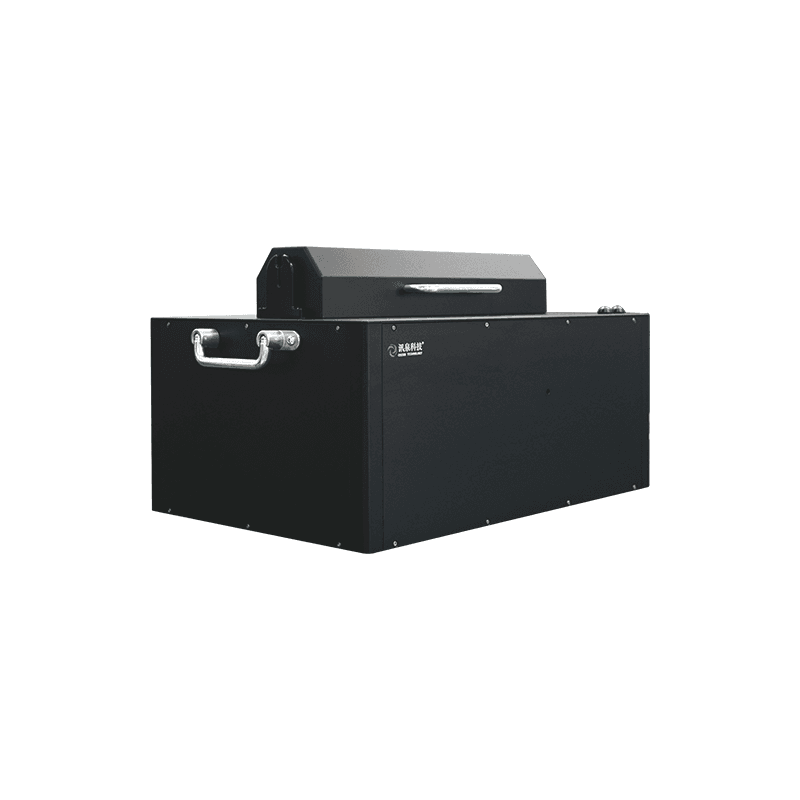

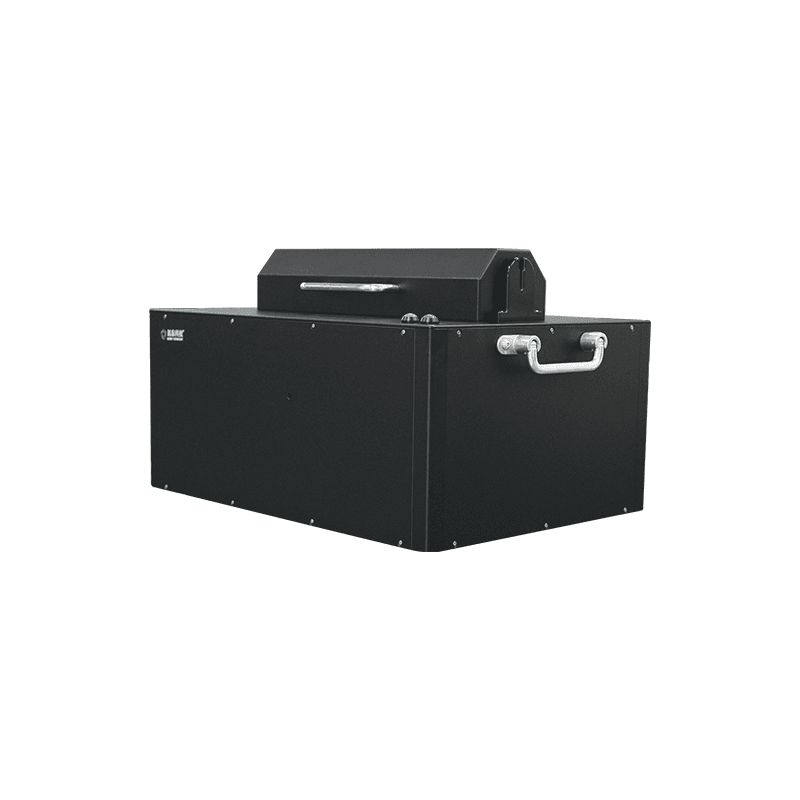

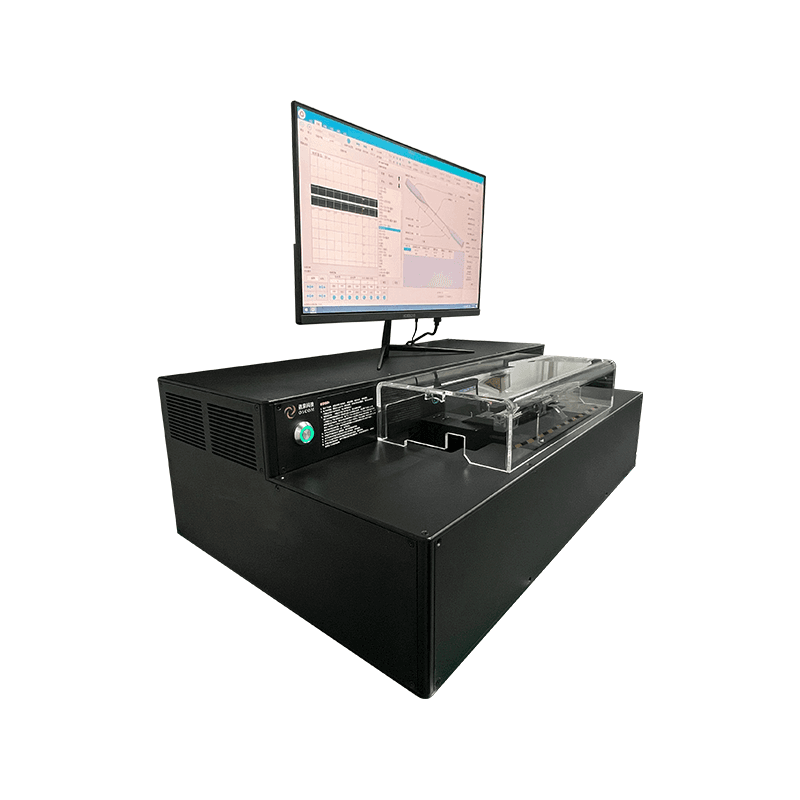

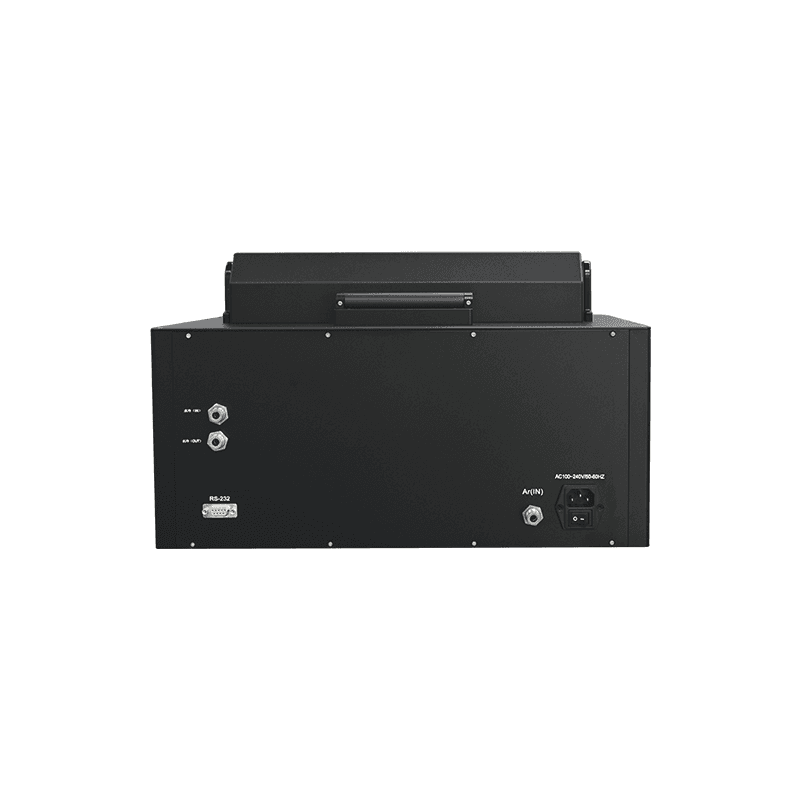

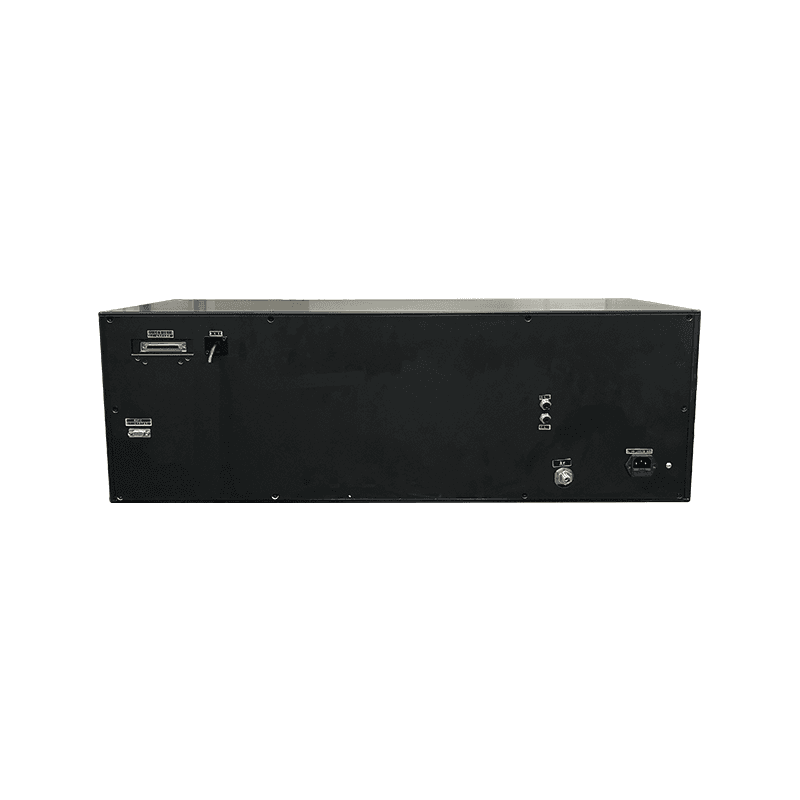

Graphite Fiber Taper (XQ7190)

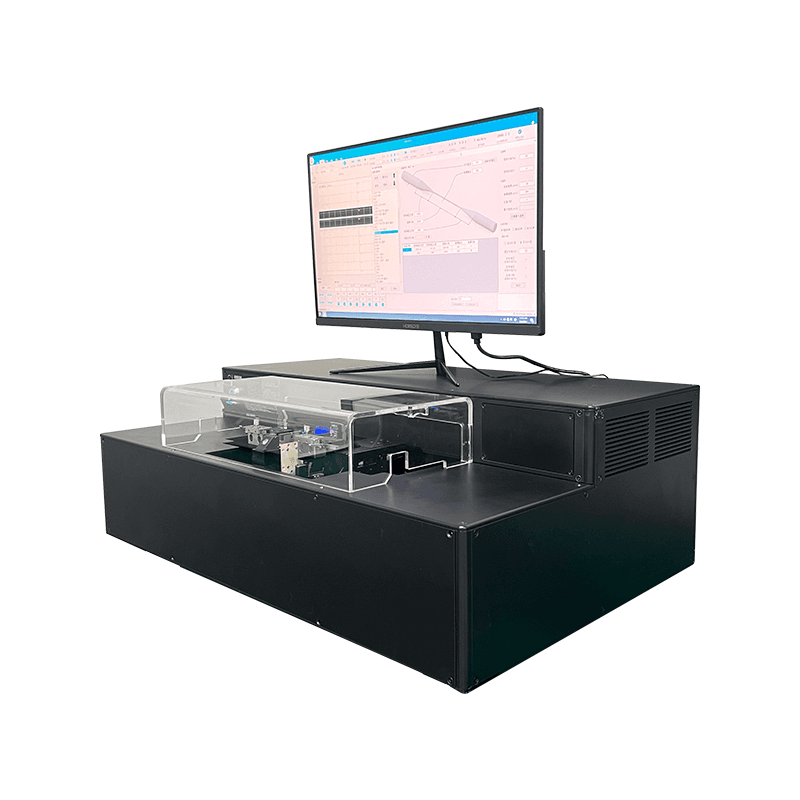

XQ7190 is a graphite fiber taper with U-shaped heated graphite filament as heat source, designed independently by OSCOM Technology. It mainly used for manufacturing ultra-high-power optical combiner and can taper low melting point fiber, quartz fiber, special fiber, glass tube, quartz rod, etc. Equipped with automatic fiber tapering system, the automatic tapering and cone area scan will be accomplished after inputting fiber and tapering diameters.
Key Features

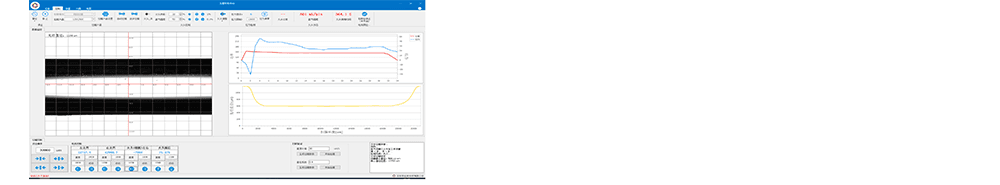

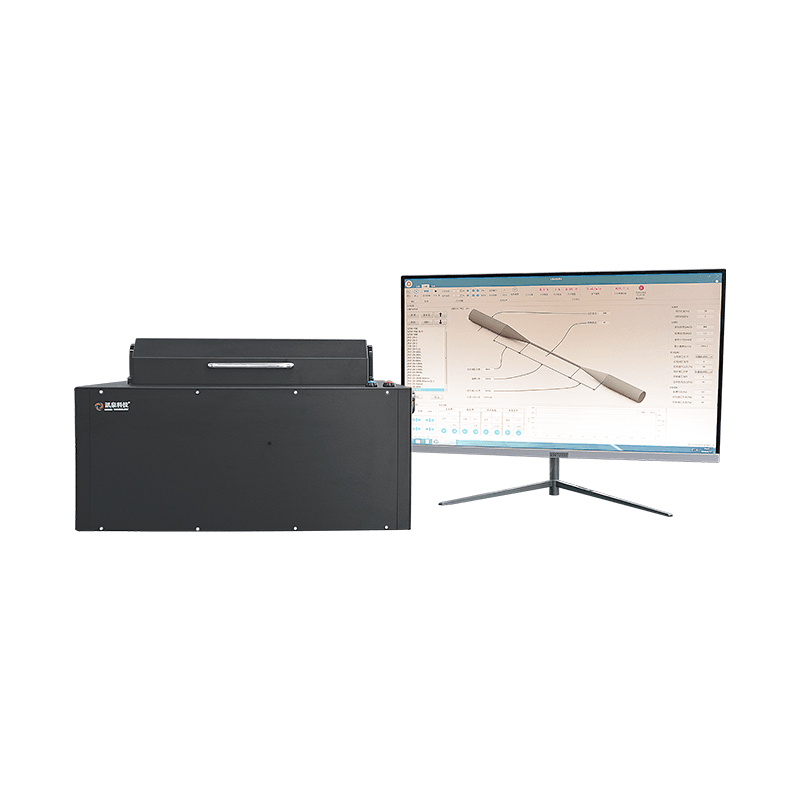

- Automatic fiber tapering system

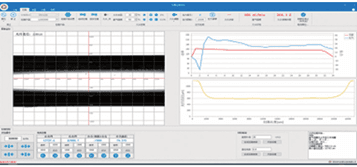

- Automatic cone area scanning
- Water-cooling refrigeration system
- Argon protective gas system

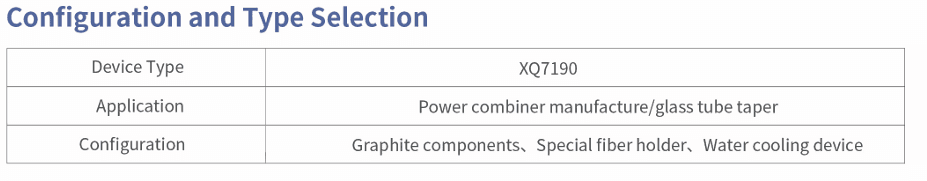

Applications
- Power combiner manufacture
- glass tube taper

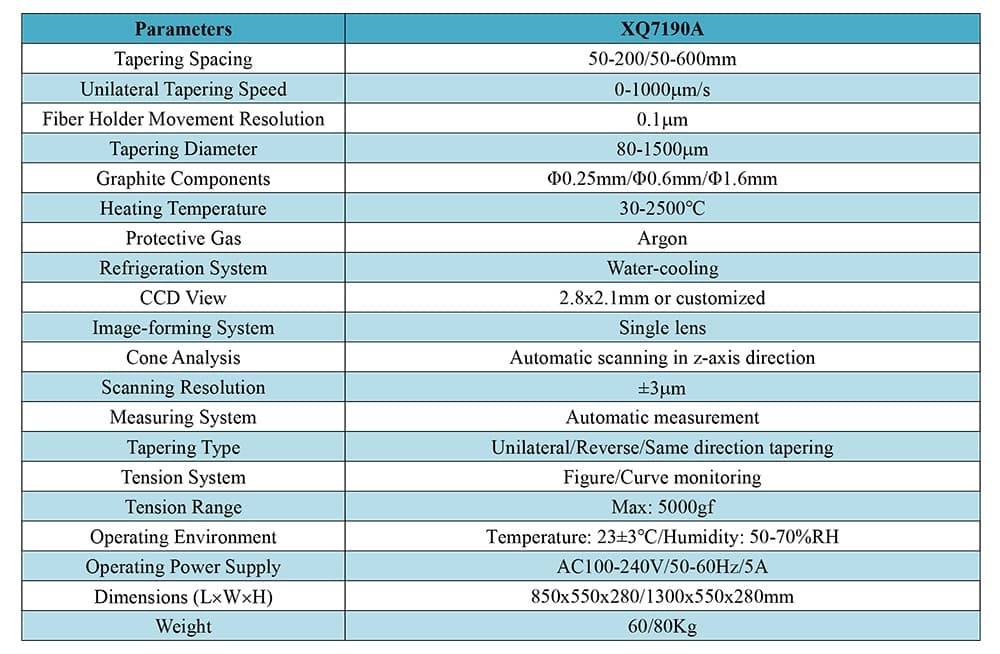

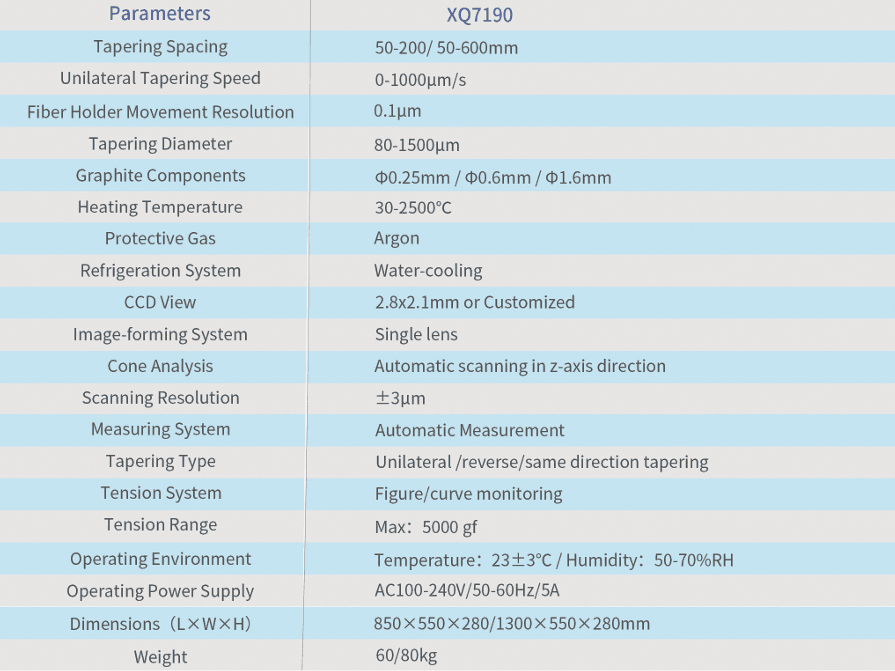

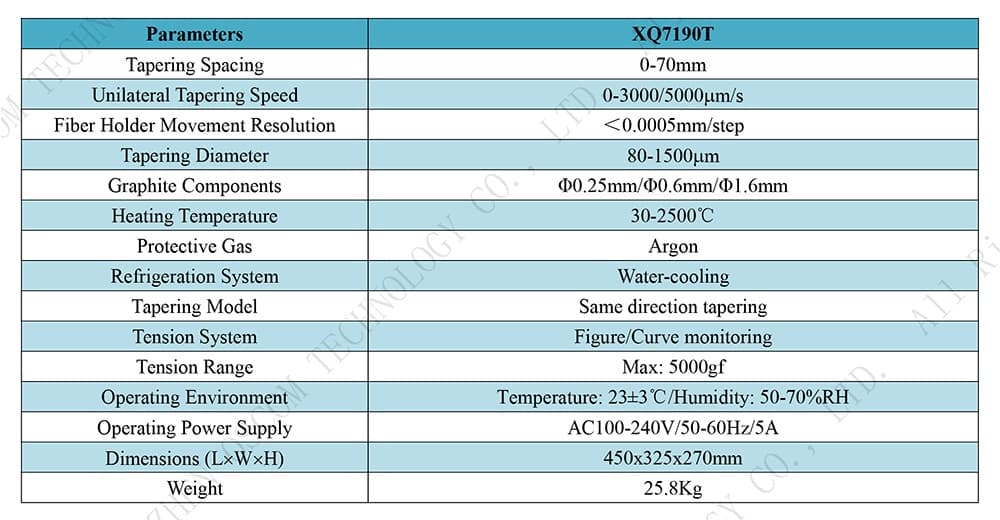

Technical Specifications
| Tapering Spacing | 50–200 / 50–600mm |
| Unilateral Tapering Speed | 0–1000μm/s |
| Fiber Holder Movement Resolution | 0.1μm |
| Tapering Diameter | 80–1500μm |
| Graphite Components | Φ0.25mm / Φ0.6mm / Φ1.6mm |
| Heating Temperature | 30–2500°C |
| Protective Gas | Argon |
| Refrigeration System | Water-cooling |
| CCD View | 2.8x2.1mm or Customized |
| Scanning Resolution | ±3μm |
| Tapering Type | Unilateral / reverse / same direction tapering |
| Tension System | Figure/curve monitoring |
| Tension Range | Max: 5000 gf |
| Operating Environment | Temperature: 23±3°C / Humidity: 50–70%RH |
| Operating Power Supply | AC100–240V / 50–60Hz / 5A |
| Dimensions (L×W×H) | 850×550×280 / 1300×550×280mm |
| Weight | 60/80kg |
