UNITFiber Cleaving Equipment

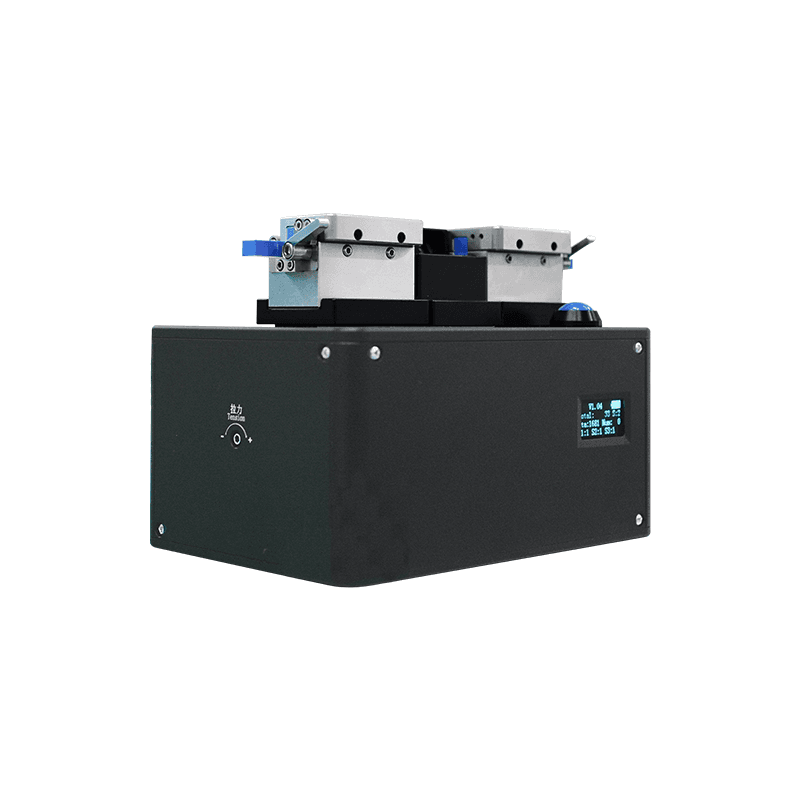

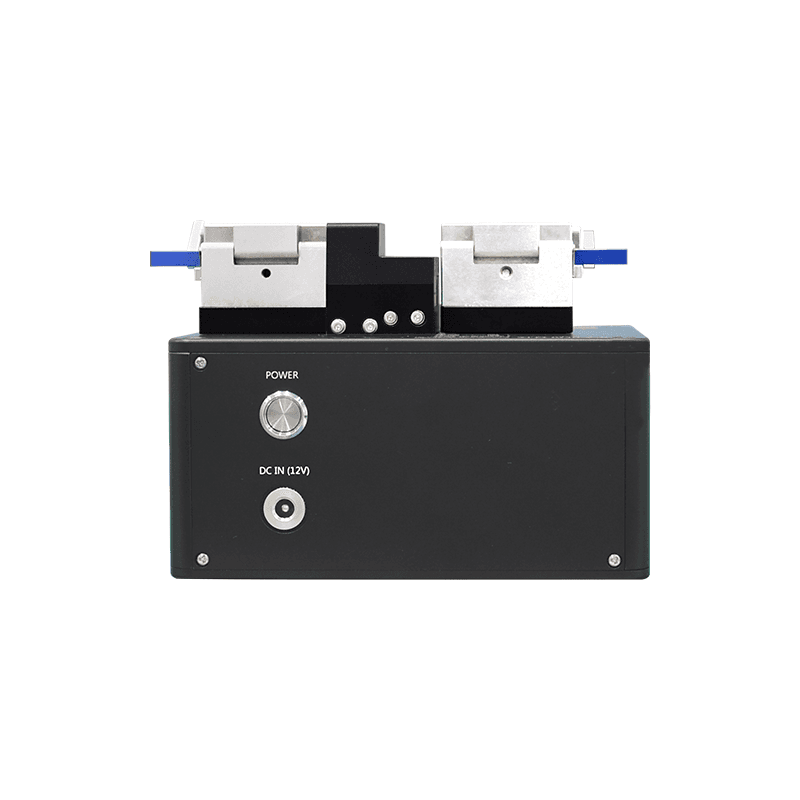

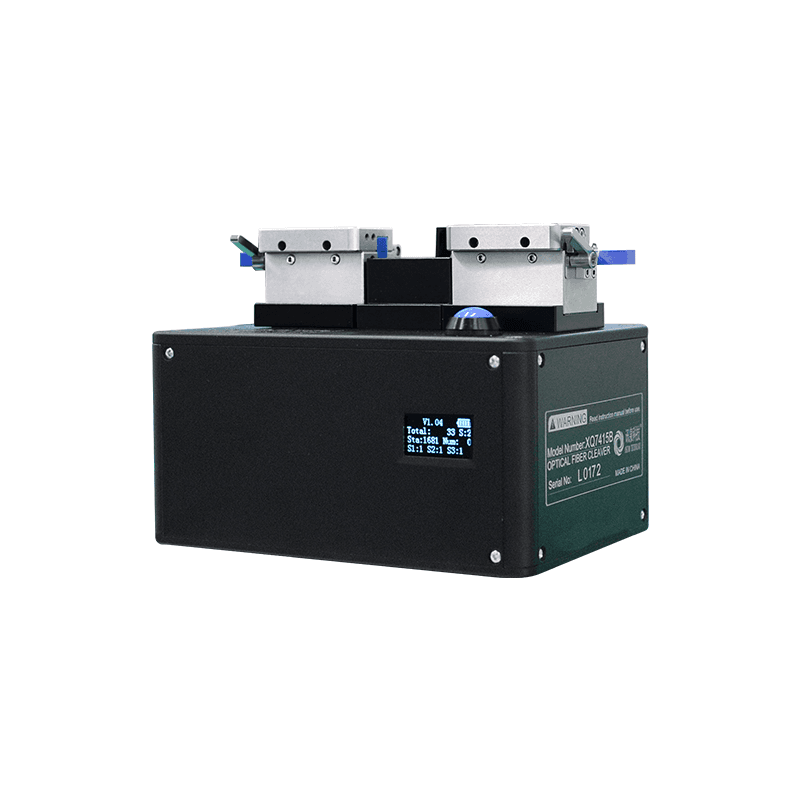

Mini Large Diameter Fiber Cleaver (XQ7415)
XQ7415 mini large diameter fiber cleaver is mainly used for cleaving large diameter fibers (50-400m).Users can cleave different types of large diameter fibers by manually setting the tension required for cleaving fiber. It cleaves quickly and is easy to use. In production, it can meet the needs that various fibers can be repeatedly cleaved.
Key Features
- The lithium battery can provide more than 24 hours power supply for each charge.
- The lithium battery can be replaced by the user.
- 50 - 400m cladding diameter fibers can be cleaved.
- Cleave time: 5 seconds.
- Diamond Cleaver blade.
Technical Specifications
| Dimensions | 100x120x80 mm |
| Weight | 1.2 kg |
| Fiber Range | Up to 600μm |
