UNITFiber Tapering Equipment

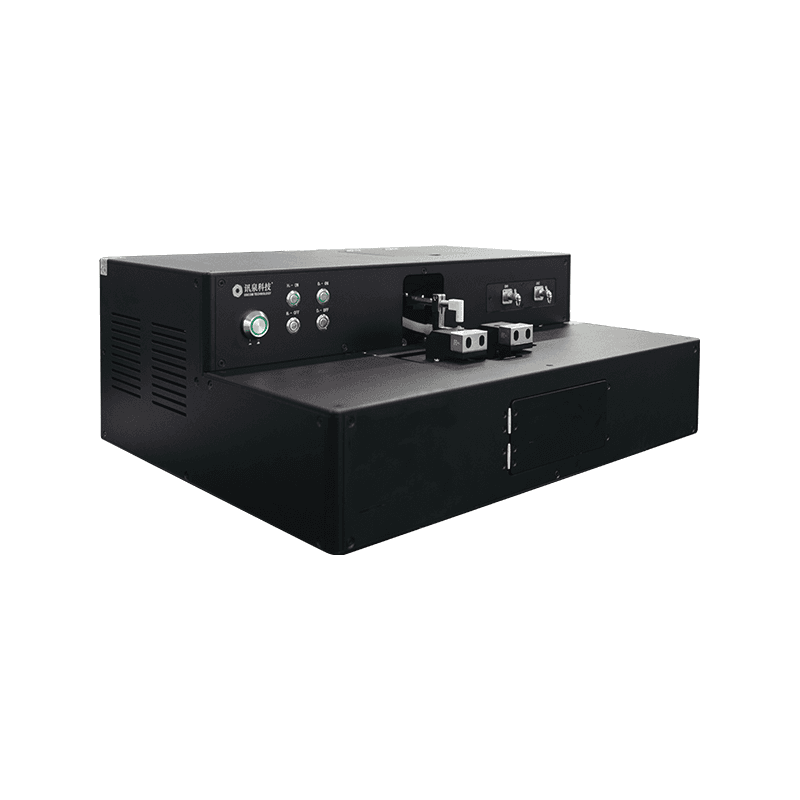

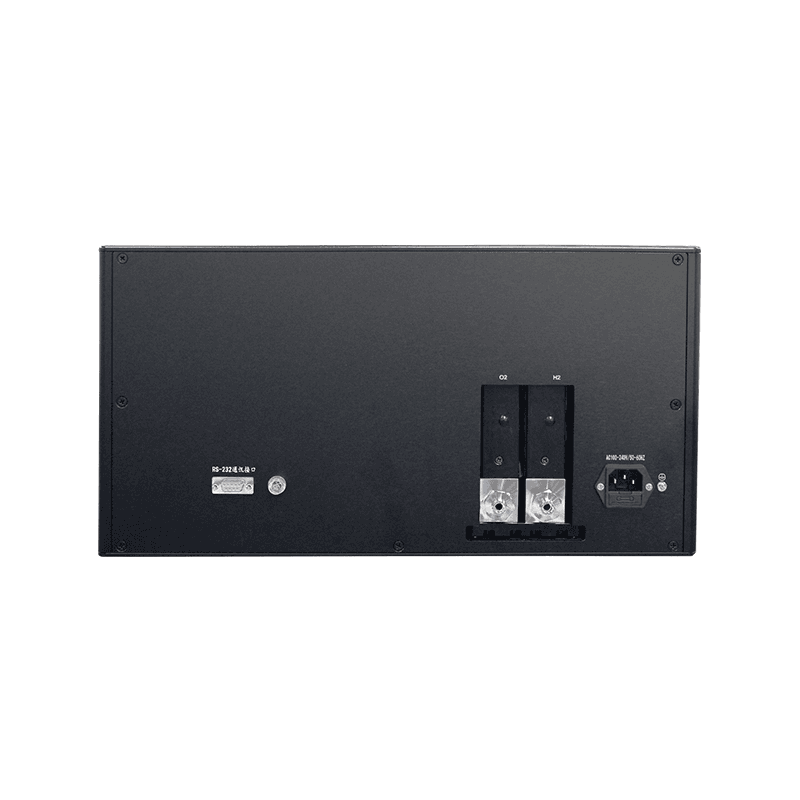

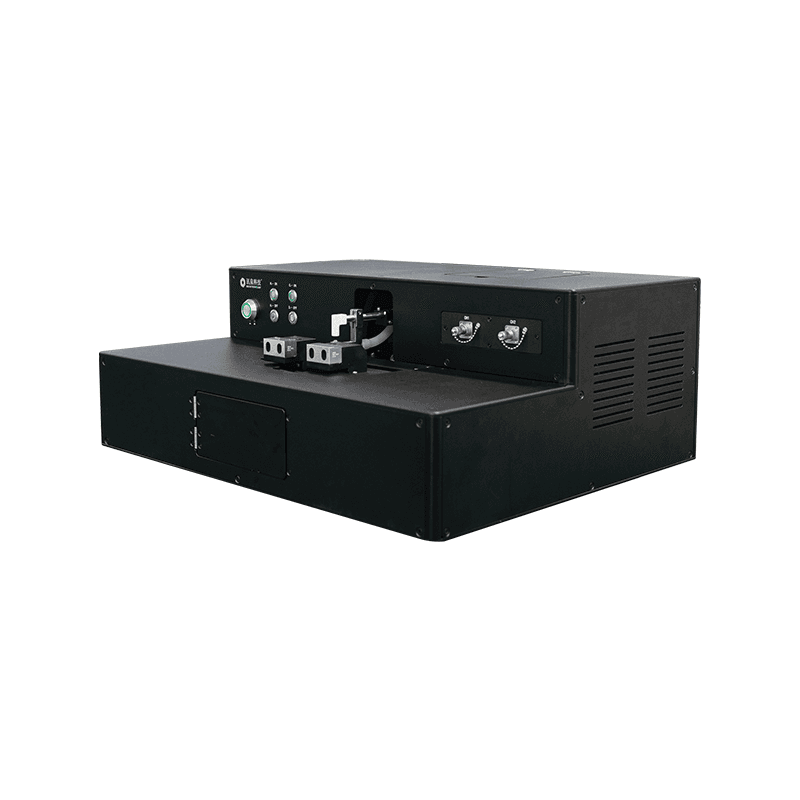

Coupler Fiber Taper (XQ7110)

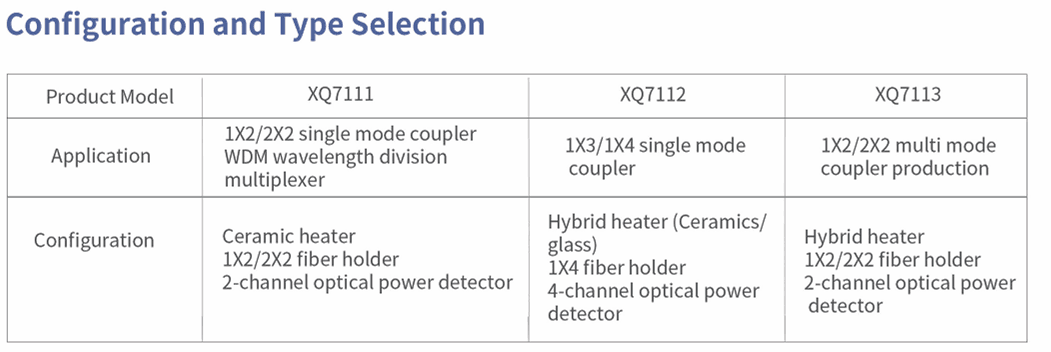

XQ7110 series taper are mainly used for making conventional 1x2/2x2/1x3/1x4 and other optical fiber splitter and WDM wavelength division multiplexer, including SSC, WBC, DWC, TWC devices of various optical splitting ratio and 980/1550WDM, 1310/1550WDM, 850/1310nm multi-mode devices ,etc.XQ7110 is multifunctional and has high compatibility which is very suitable for batch manufacturing of various tapering devices.
Key Features
- High yield production

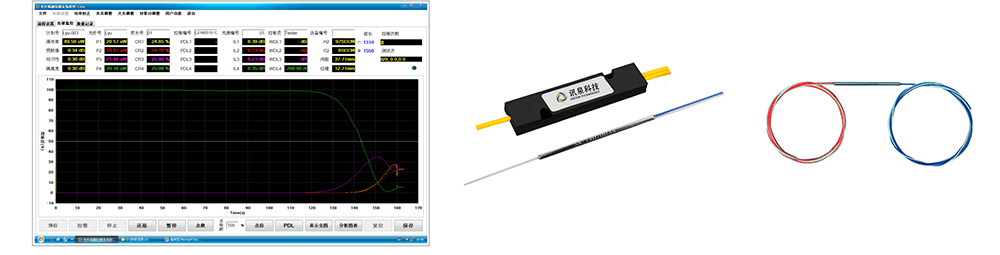

- Real-time optical monitoring
- Automated packaging prep
- Consistent coupling ratio
Applications
- Telecom splitters
- WDM components
- CATV networks

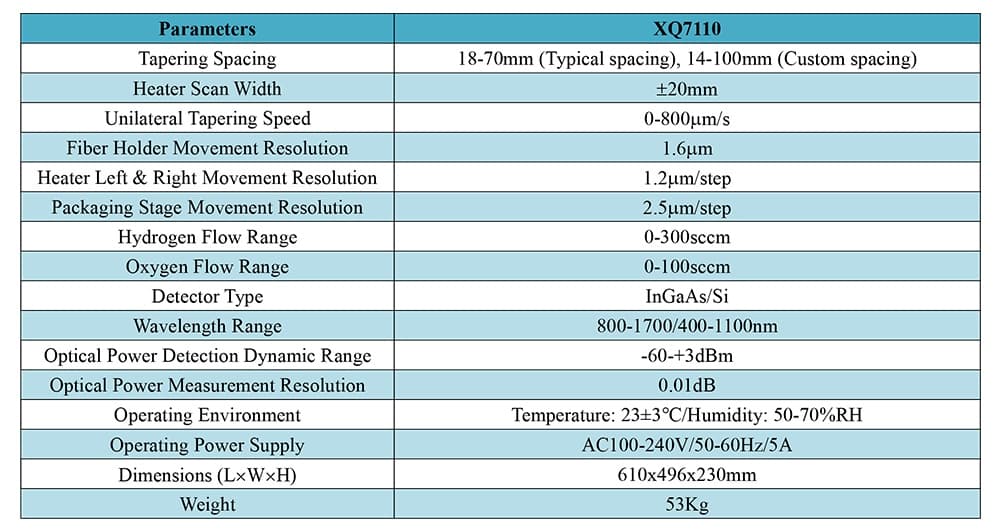

Technical Specifications
| Coupling Ratio | 1:99 to 50:50 adjustable |
| Excess Loss | < 0.05 dB |
| Monitoring Wavelengths | 1310nm, 1550nm |
