Extinction Ratio Tester (XQ5710)
XQ5710 is an extinction ratio tester designed independently by OSCOM Technology for measuring the extinction ratio and polarization state of polarization-maintaining fibers and related optical components.
Key Features
- High measurement precision
- Polarization state analysis
- PM fiber compatibility
- Automated measurement mode
Applications
- Extinction ratio measurement for polarization-maintaining fibers
- optical component testing

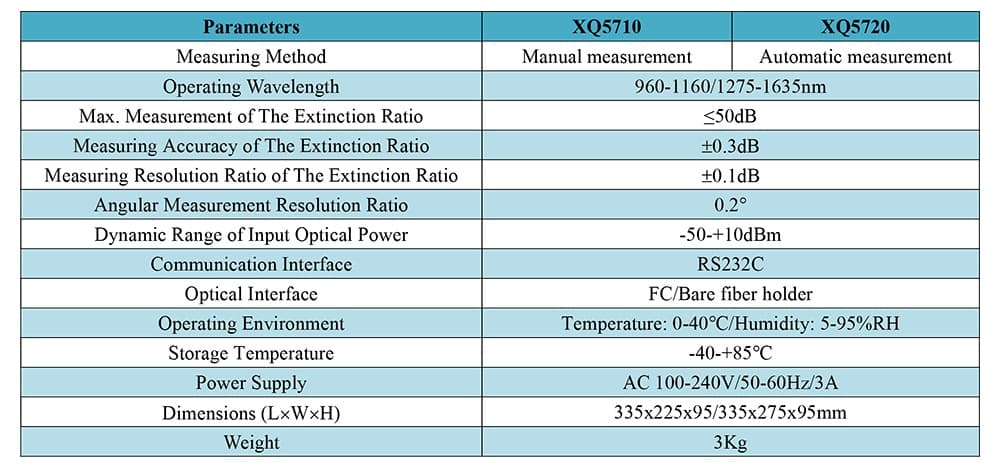

Technical Specifications
| Operating Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Power Supply | AC100–240V / 50–60Hz |
