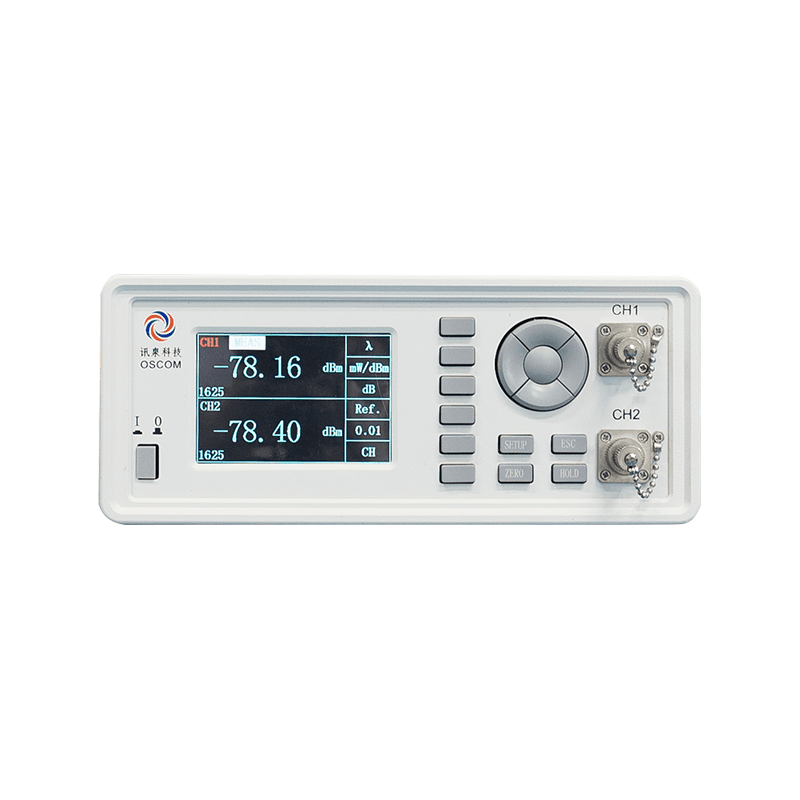

Optical Power Meter (XQ5210)
XQ5210 is a standard optical power meter designed independently by OSCOM Technology. It utilizes InGaAs or Si light receiving material as photodetector and integrates automatic range switching, power measurement, insertion loss measurement, PDL measurement, and RS232C interface. XQ5210 optical power meter can provide single channel benchtop light source.
Key Features
- InGaAs or Si photodetector
- Automatic range switching
- Power measurement and insertion loss measurement
- PDL measurement capability
- RS232C interface
Applications
- Optical fiber communication test
- optical fiber sensing test
- optical device production and test
- automatic optical test system

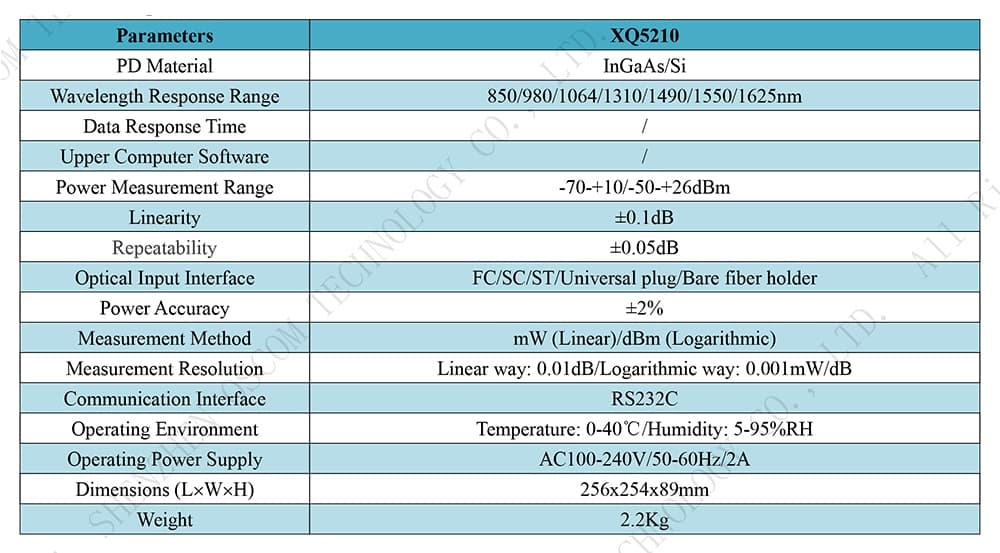

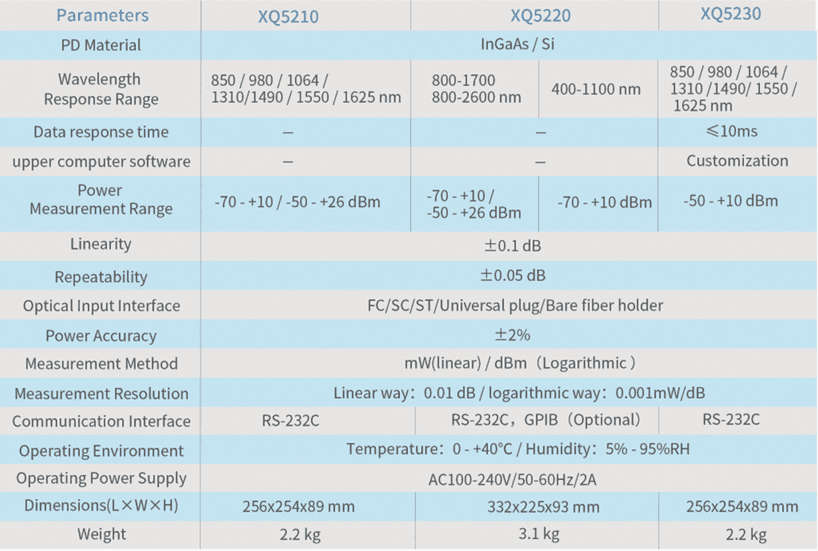

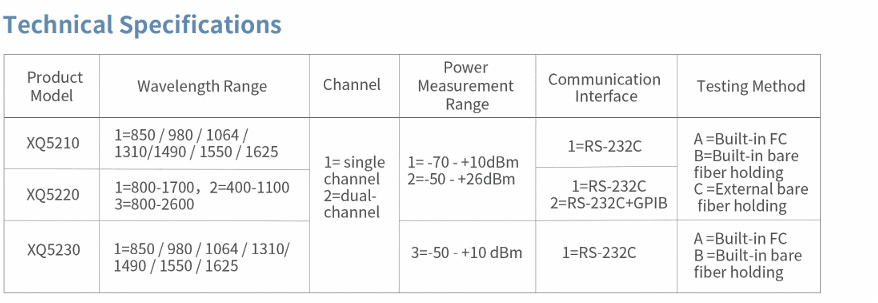

Technical Specifications
| PD Material | InGaAs / Si |
| Wavelength Response Range (XQ5210) | 850 / 980 / 1064 / 1310/1490/1550/1625 nm |
| Power Measurement Range | -70 – +10 / -50 – +26 dBm |
| Linearity | ±0.1 dB |
| Repeatability | ±0.05 dB |
| Optical Input Interface | FC/SC/ST/Universal plug/Bare fiber holder |
| Power Accuracy | ±2% |
| Measurement Method | mW (linear) / dBm (Logarithmic) |
| Measurement Resolution | Linear way: 0.01 dB / logarithmic way: 0.001mW/dB |
| Communication Interface | RS-232C |
| Operating Environment | Temperature: 0 – +40°C / Humidity: 5% – 95%RH |
| Operating Power Supply | AC100–240V / 50–60Hz / 2A |
| Dimensions (L×W×H) | 256x254x89 mm |
| Weight | 2.2 kg |
