UNITFiber Tapering Equipment

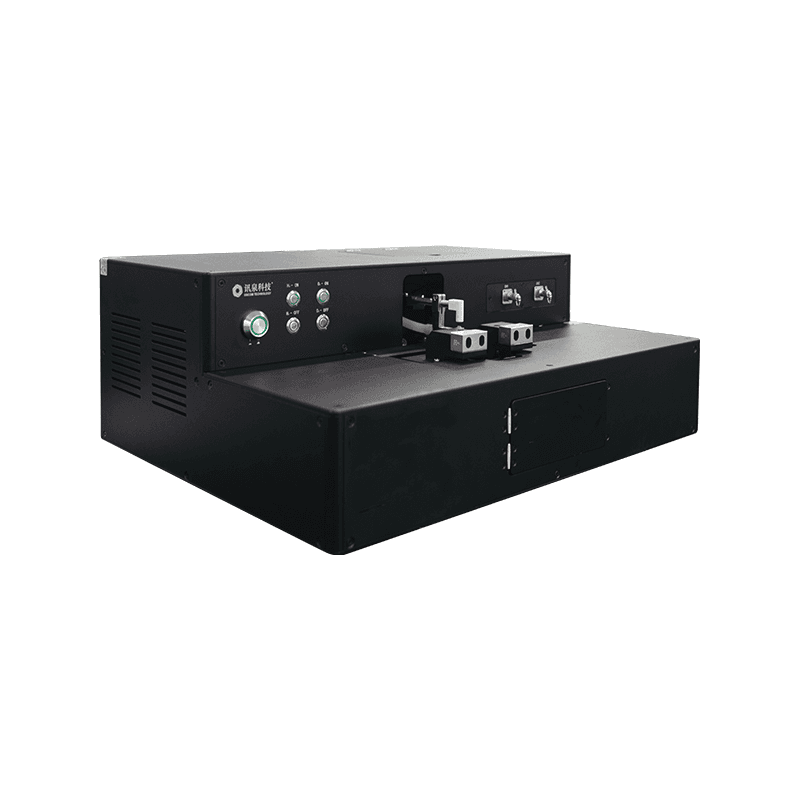

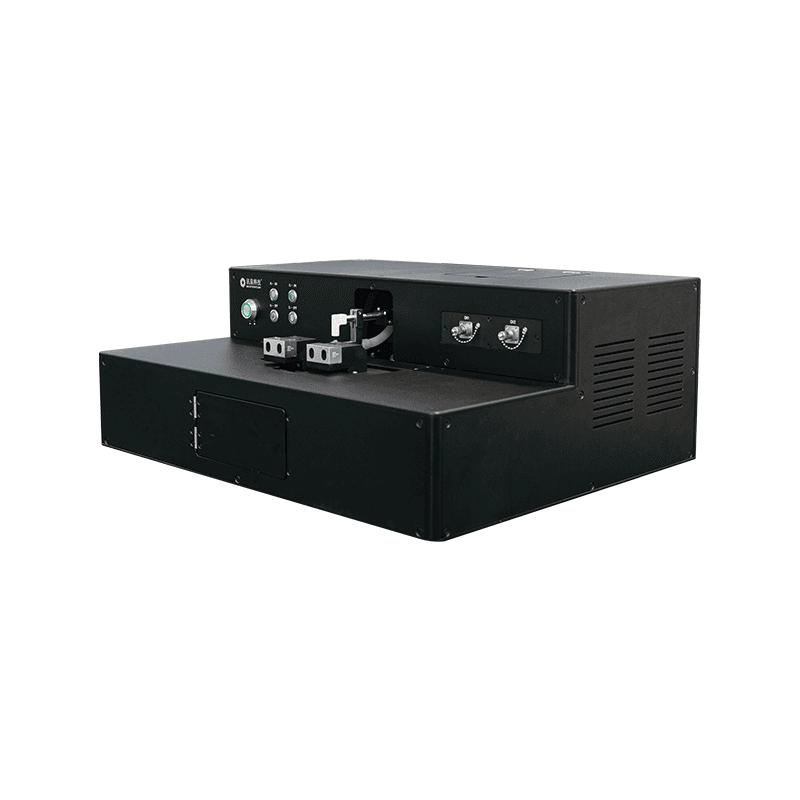

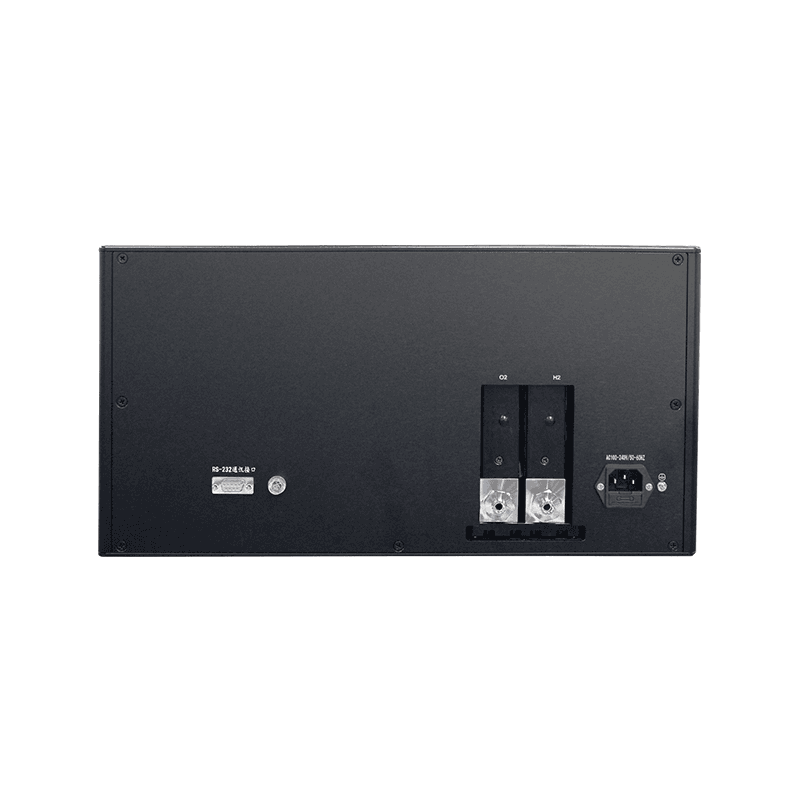

Optical Combiner Fiber Taper (XQ7140)
XQ7140 is used mainly for manufacturing high and low power optical fiber combiner, including (1+1)x1 side-pump, (2+1)x1, (6+1)x1, 7x1 end-pump ,etc. It is fit greatly for the usage habits of users and very suit for mass production and manufacturing of high and low power optical fiber combiner. XQ7140 is Stable , reliable and easy to use.
Key Features
- Pump combiner manufacturing
- High precision tapering
- Industrial automation
Applications
- Fiber laser production
- High-power photonics

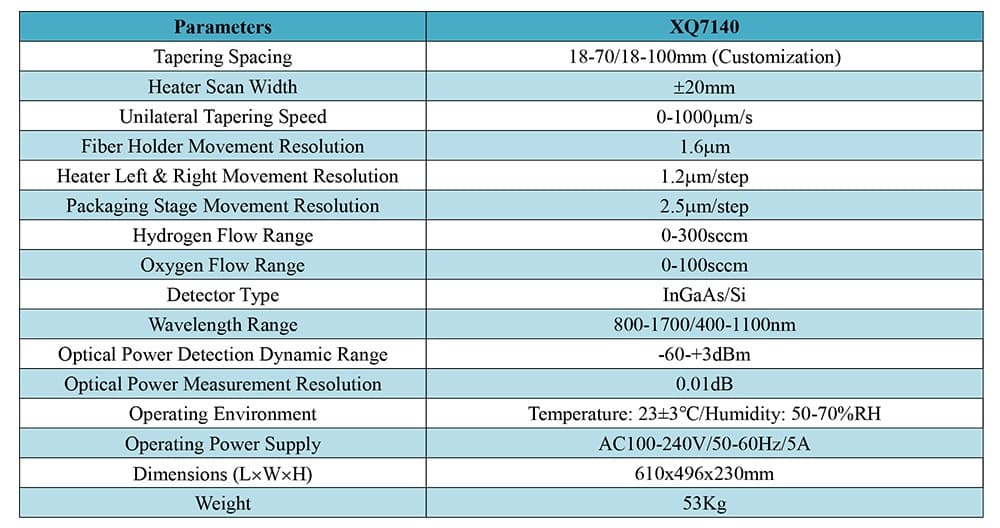

Technical Specifications
| Combiner Types | (N+1)x1, Nx1 |
| Power Handling | > 1kW per port |
| Throughput Efficiency | > 95% |
| Heating Source | Large Zone Heater |
