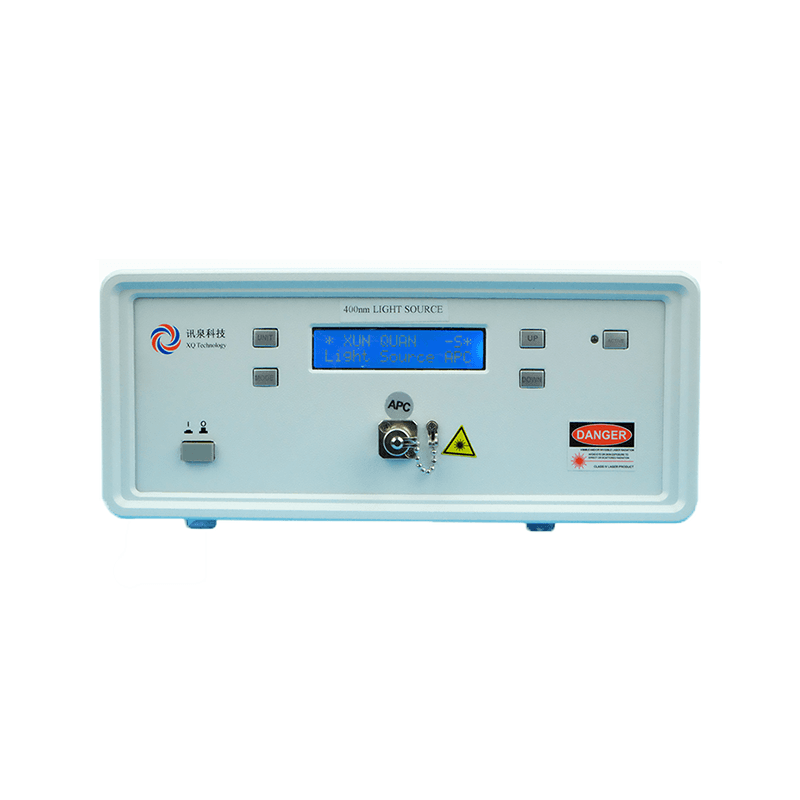

Pump Test Light Source (XQ5130)
UNITOptical Light Sources

Pump Test Light Source (XQ5130)

XQ5130 is a pump test light source which is designed independently by OSCOM Technology. It utilizes pump laser as its emission source, and integrates the technology of automatic temperature control (ATC), automatic power control (APC), RS232C communication control, etc. and well-designed auxiliary cooling system. It can provide 1/2-channel benchtop light source, and its typical application wavelengths are 793nm,808nm,915nm,940nm,980nm,1030nm,1060nm, etc. XQ5130 is stable , reliable, easy to use and very suitable for the development of laser equipment , the production and testing of medium and high power optical fiber devices ,and other applications.

Key Features

  • High power output
  • Wavelength stabilization
  • Active cooling
  • Current monitoring

Applications

  • EDFA testing
  • Raman amplifier test
  • Component stress testing

Technical Specifications

Wavelengths980nm, 1480nm
Output PowerUp to 1W
Temperature ControlBuilt-in TEC controller
