UNITOptical Light Sources
Single Mode Test Light Source (XQ5110)
XQ5110 is a single mode test light source designed for optical fiber communication testing, optical fiber sensing, optical fiber device production and test, optical module production and test, and automatic optical test system construction. Built with high stability laser diode technology and advanced temperature control.
Key Features
- High stability laser diode light source
- Automatic temperature control (ATC)
- Automatic power control (APC)
- RS232C communication interface
- Suitable for optical device testing
Applications
- Optical fiber communication test
- optical fiber sensing test
- optical module production and test

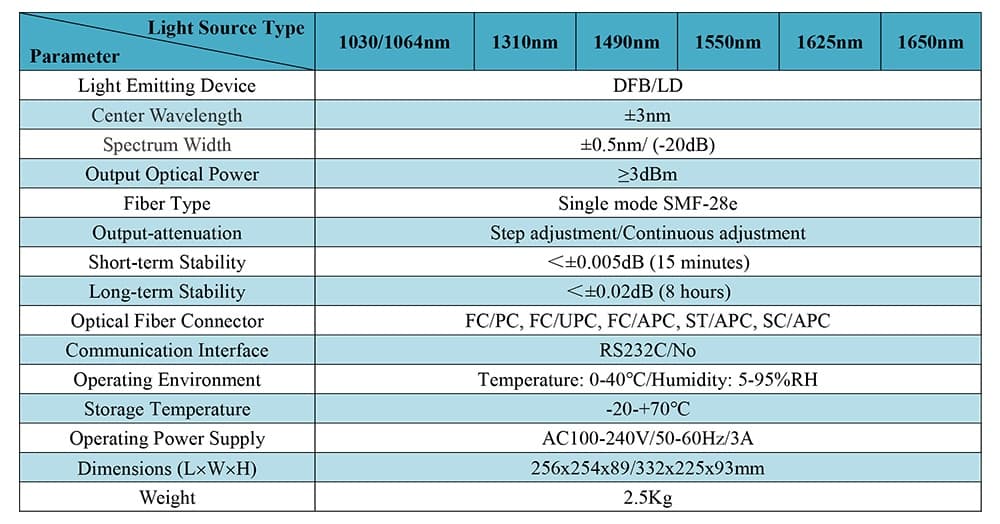

Technical Specifications
| Fiber Type | Single Mode SMF-28e |
| Operating Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Power Supply | AC100–240V / 50–60Hz |
