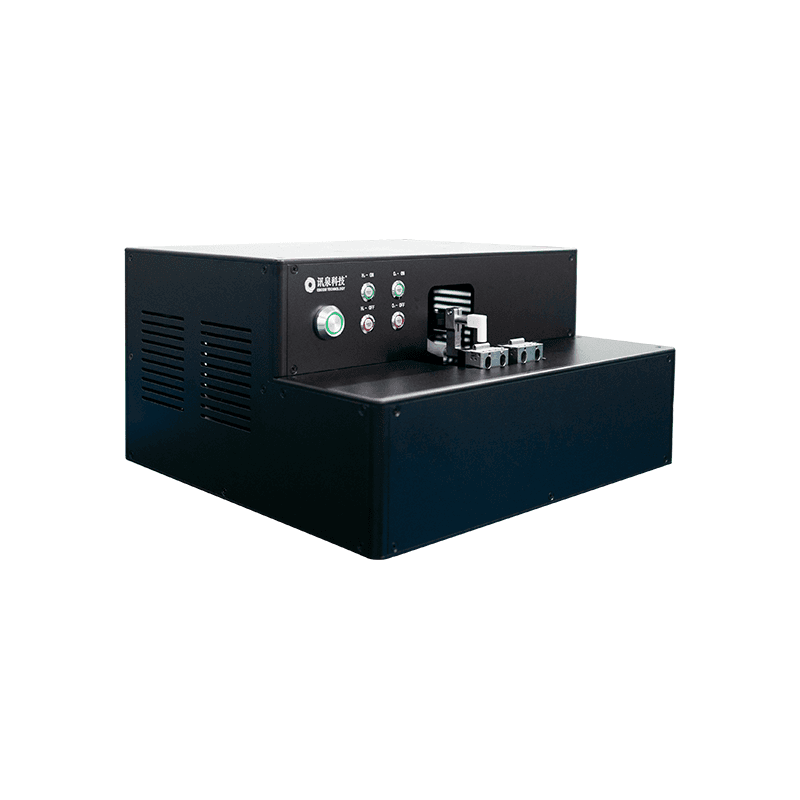

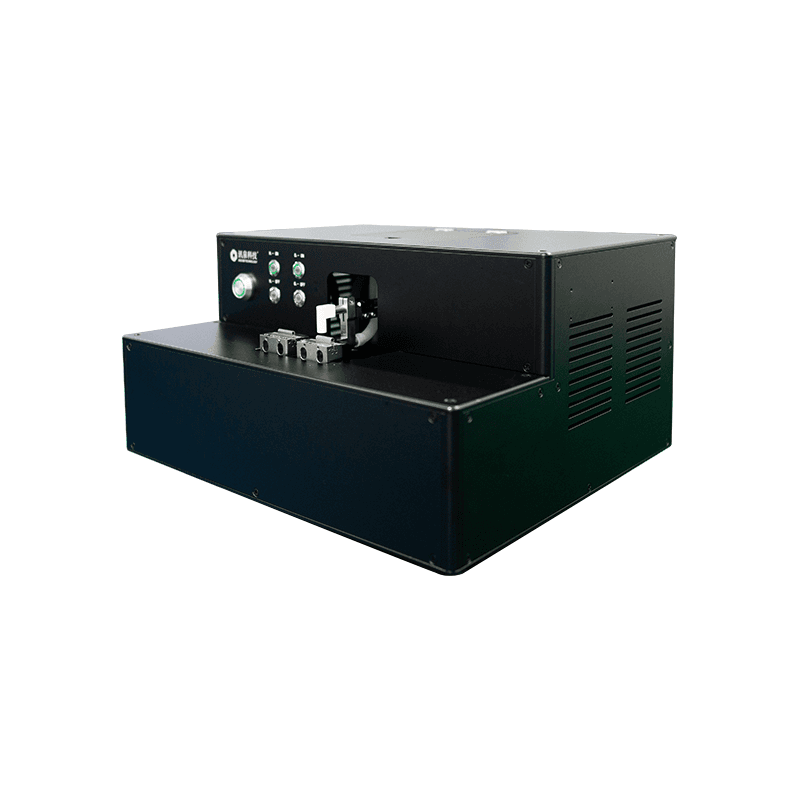

TEC Fiber Beam Expander (XQ71CO)

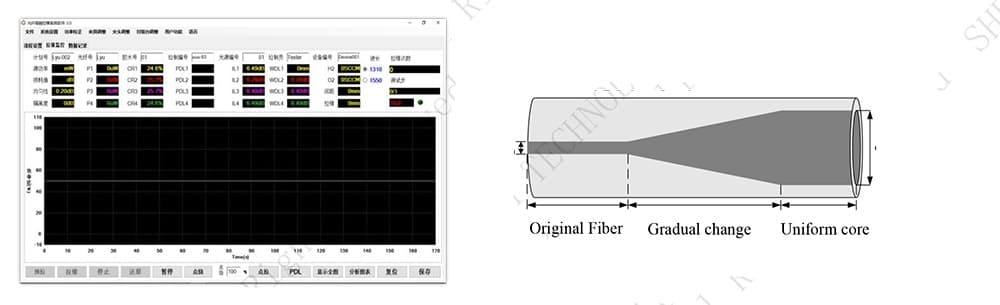

XQ71C0 is used mainly for expanding the core of various types of fibers. Utilizing single/double-operating position to expand/fire simultaneously , the corresponding core expanding process parameters can be designed according to different optical fibers, and the firing flow and firing time can be set with the software. XQ71C0 is stable , reliable, easy to use and has high expanding efficiency.
Key Features
- TEC temperature control
- Precise mode field expansion
- Low loss thermal diffusion
- Automated process
Applications
- High power fiber connection
- Mode field matching
- Laser diode coupling
Technical Specifications
| Temperature Range | Up to 1500°C via specialized micro-heater |
| TEC Cooling | Integrated |
| Mode Field Expansion Ratio | Up to 5x |
