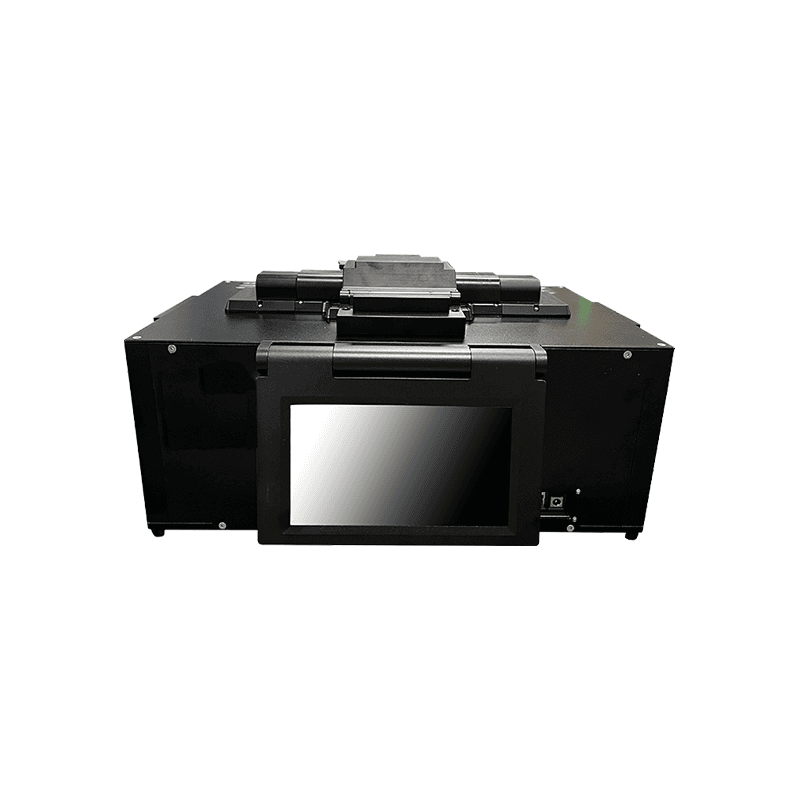

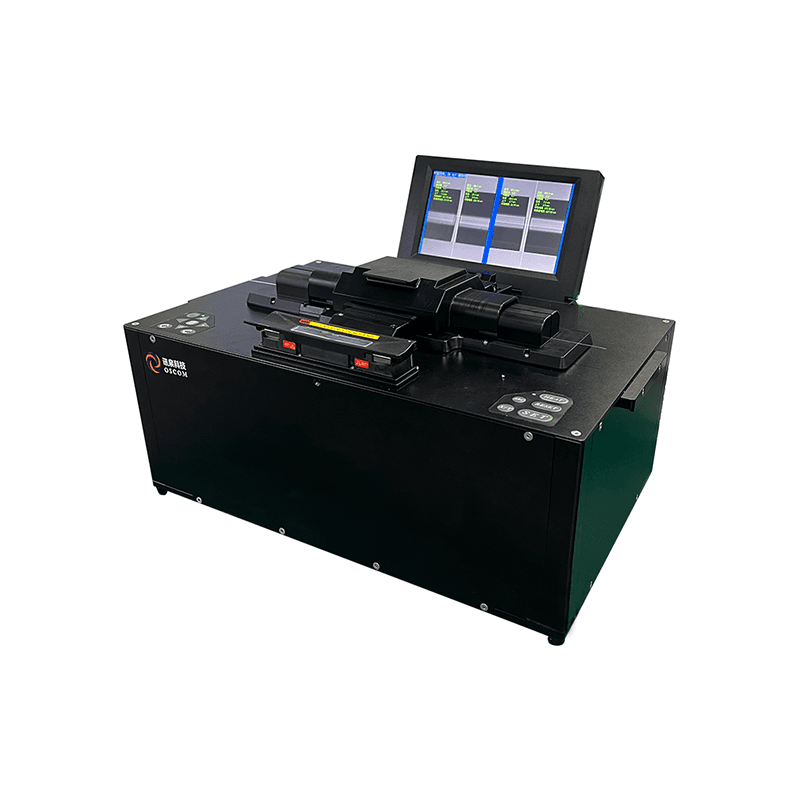

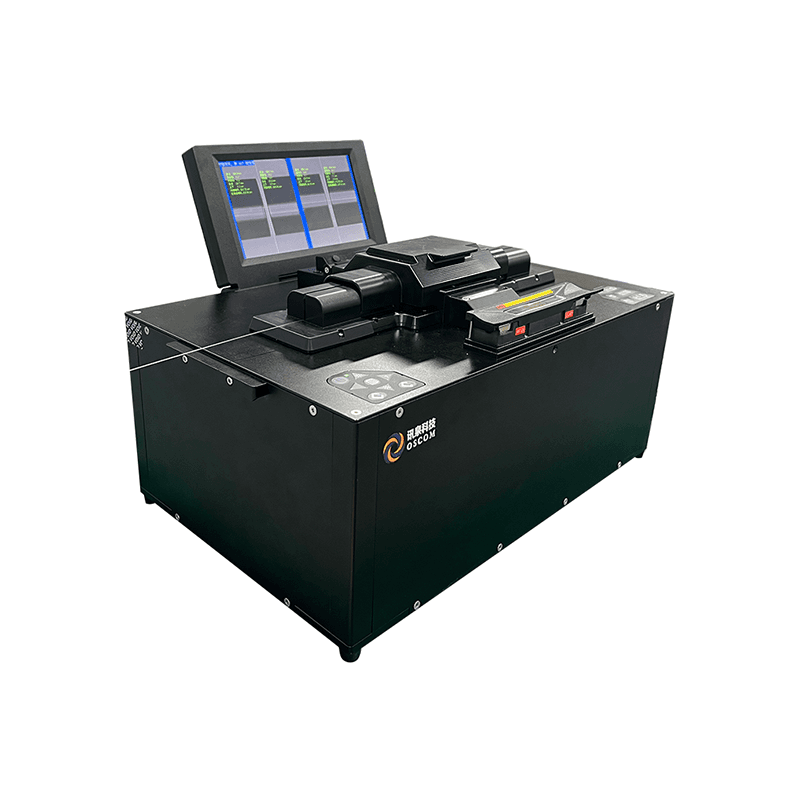

Large Diameter Fiber Splicer (XQ7260)
XQ7260 is a large-core fiber splicer designed independently by OSCOM Technology. Its heat source is an electrode arc. It can splice quartz fiber and large-core fiber. Different specifications of optical fiber holders can be replaced to meet the splicing of fiber with different core diameters.
Key Features
- Low splicing loss
- High splicing quality
- Artificial intelligence touch screen

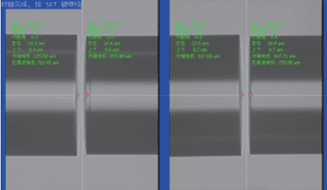

- Visual fiber end face imaging system

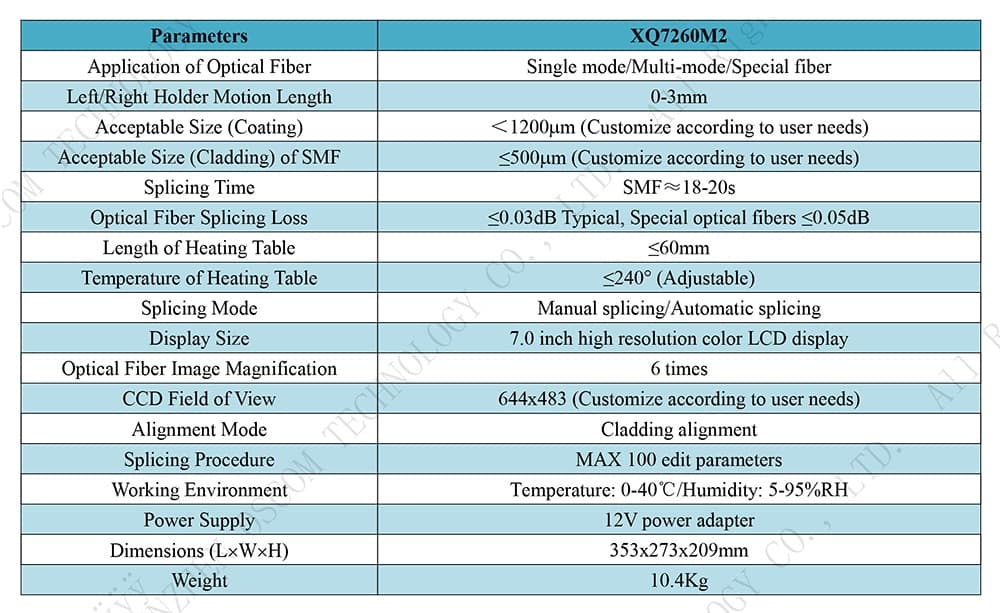

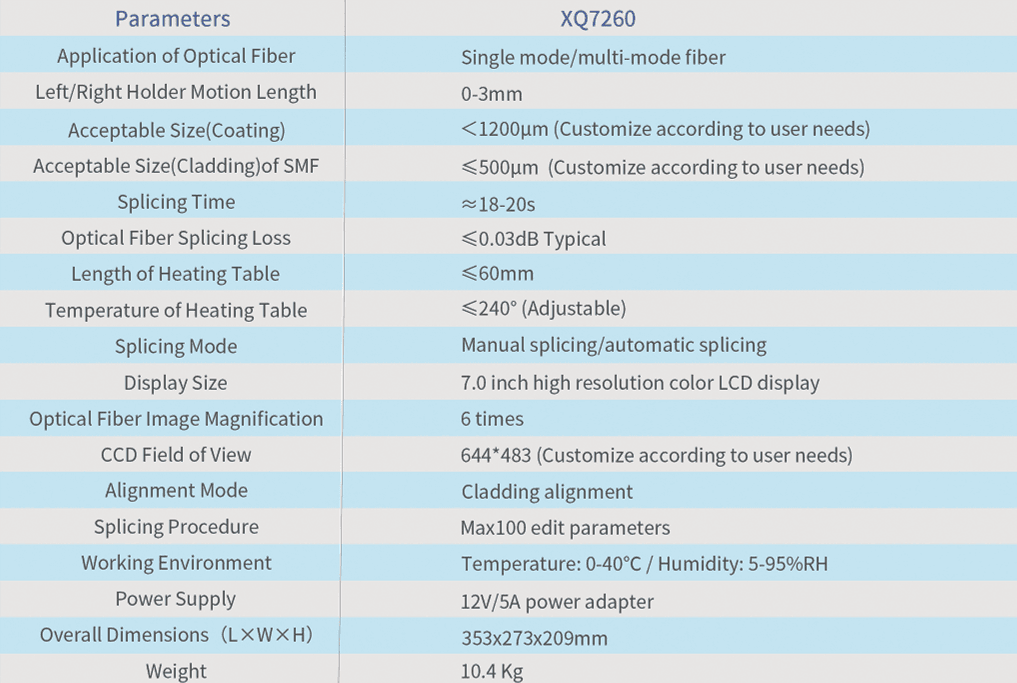

Technical Specifications
| Application of Optical Fiber | Single mode / multi-mode fiber |
| Left/Right Holder Motion Length | 0–3mm |
| Acceptable Size (Coating) | <1200μm (Customize according to user needs) |
| Acceptable Size (Cladding) of SMF | ≤500μm (Customize according to user needs) |
| Splicing Time | ≈18–20s |
| Optical Fiber Splicing Loss | ≤0.03dB Typical |
| Length of Heating Table | ≤60mm |
| Temperature of Heating Table | ≤240° (Adjustable) |
| Display Size | 7.0 inch high resolution color LCD display |
| Optical Fiber Image Magnification | 6 times |
| CCD Field of View | 644*483 (Customize according to user needs) |
| Alignment Mode | Cladding alignment |
| Splicing Procedure | Max 100 edit parameters |
| Working Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Power Supply | 12V/5A power adapter |
| Overall Dimensions (L×W×H) | 353x273x209mm |
| Weight | 10.4 Kg |
