Fiber Splicing Equipment

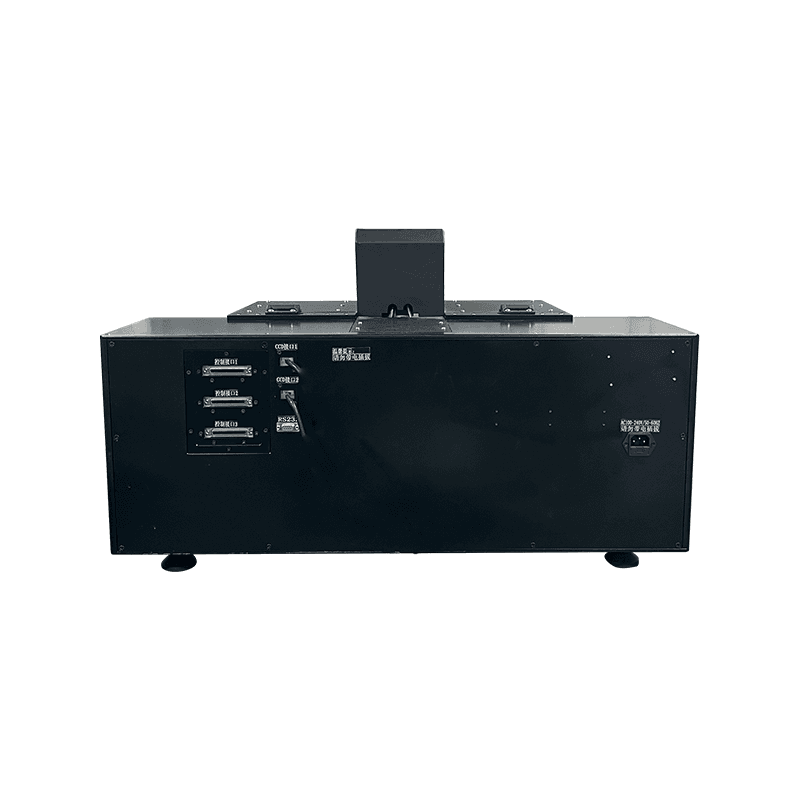

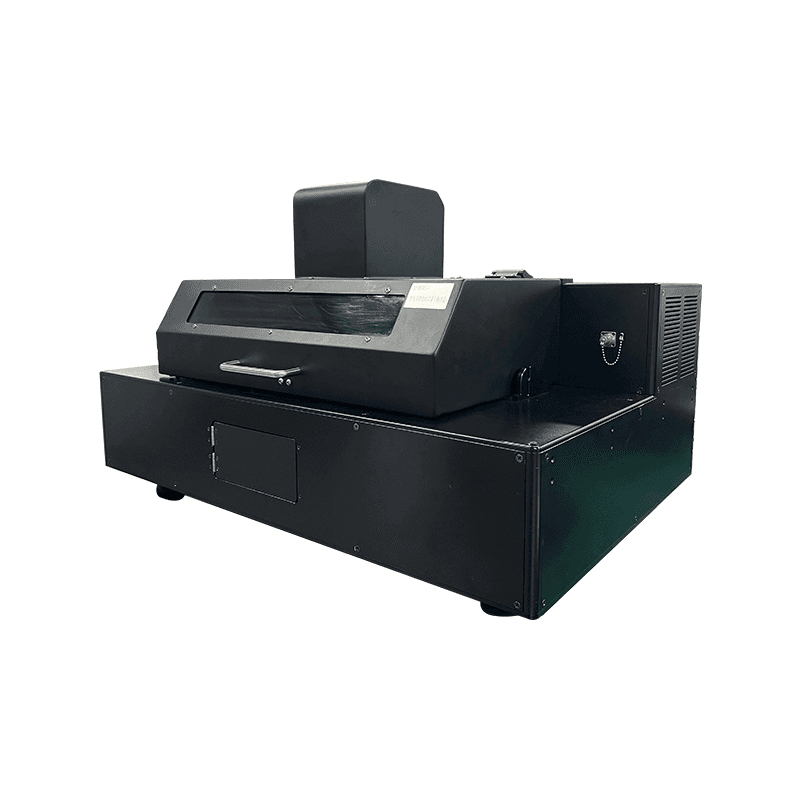

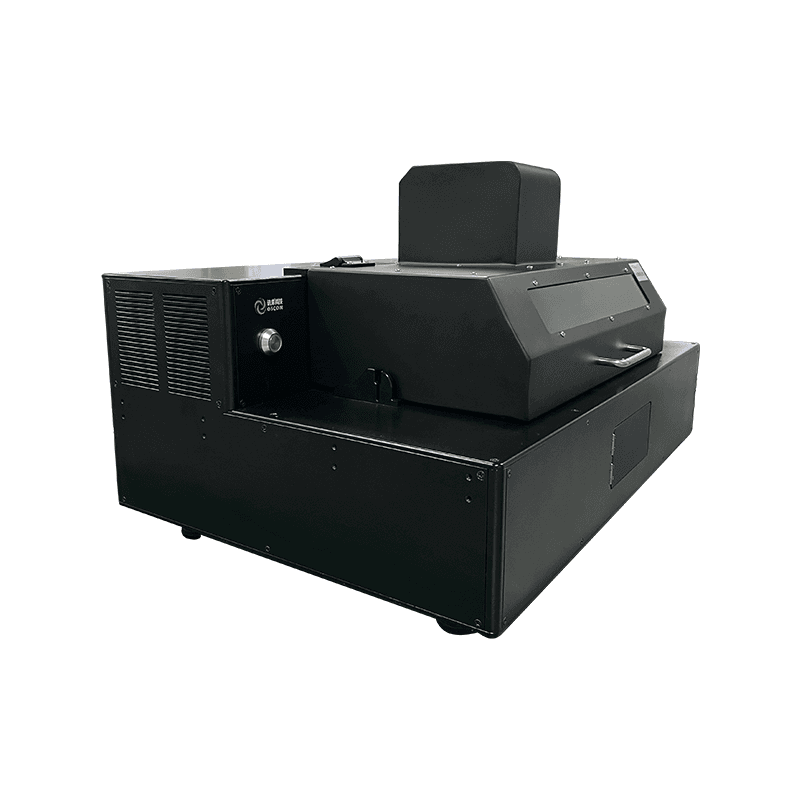

Special Fiber Splicer (XQ7230)
XQ7230 is a large-diameter special fiber splicing system based on electric heat source, designed independently by OSCOM Technology. The system is mainly used in splicing and cleaving fiber bundles in the manufacture of fiber combiners supporting 2x1, 3x1, 7x1, (6+1)x1, (18+1)x1, 19x1 tapering zone combiner and output fiber. XQ7230 integrates ultrasonic on-line cleave, enabling rapid and steady cleave and splice of fiber bundles, enhancing the efficiency of fiber combiner manufacture.
Key Features
- Can cleave, taper and splice
- Adjustable size electric heat source
- Long stroke, meets needs of long taper waist taper
- Rich function library, realizable by simple programming

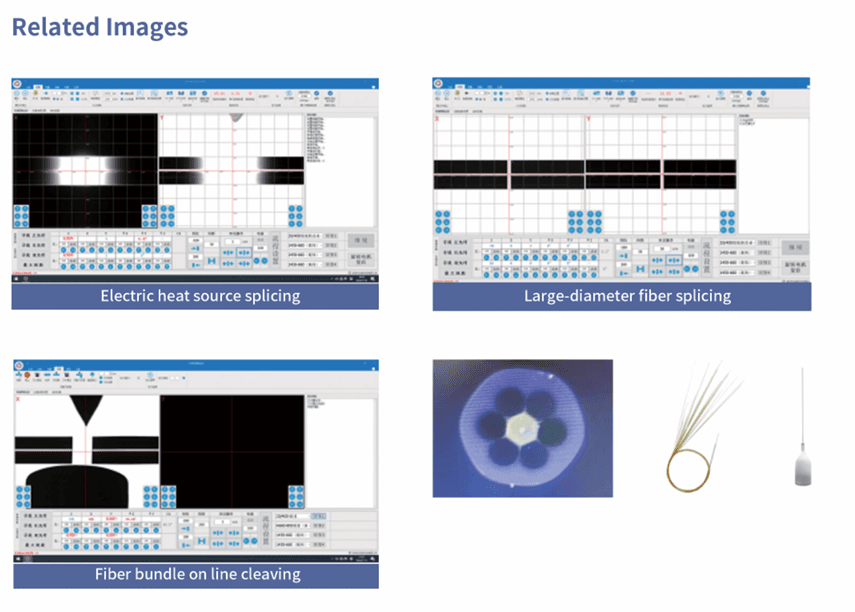

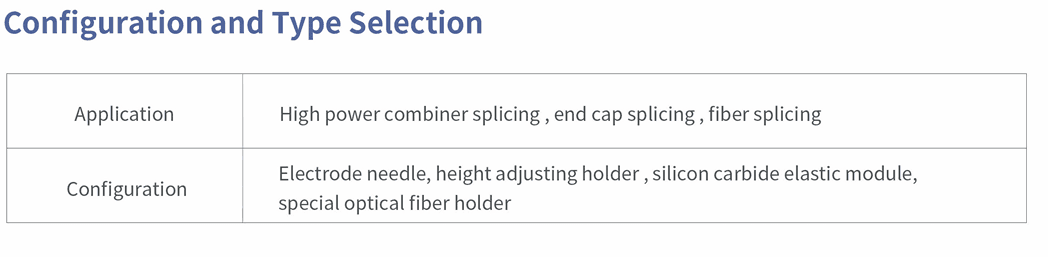

Applications
- High power combiner splicing
- end cap splicing
- fiber splicing

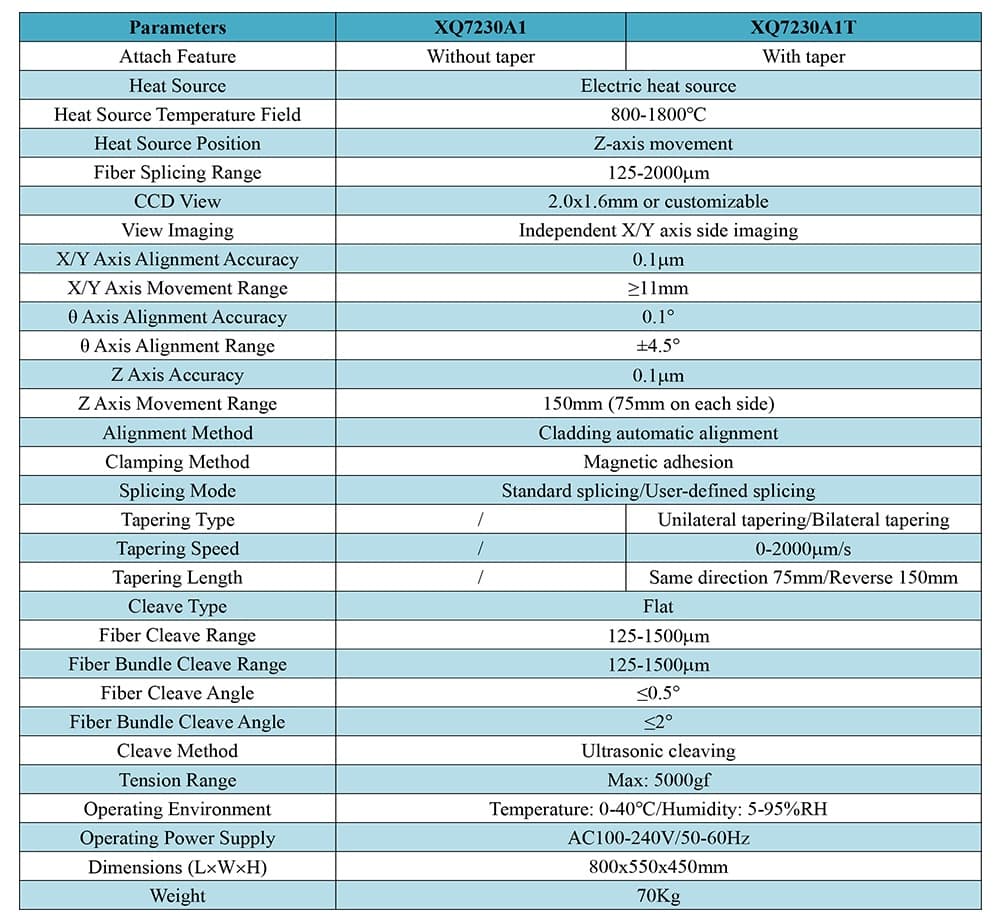

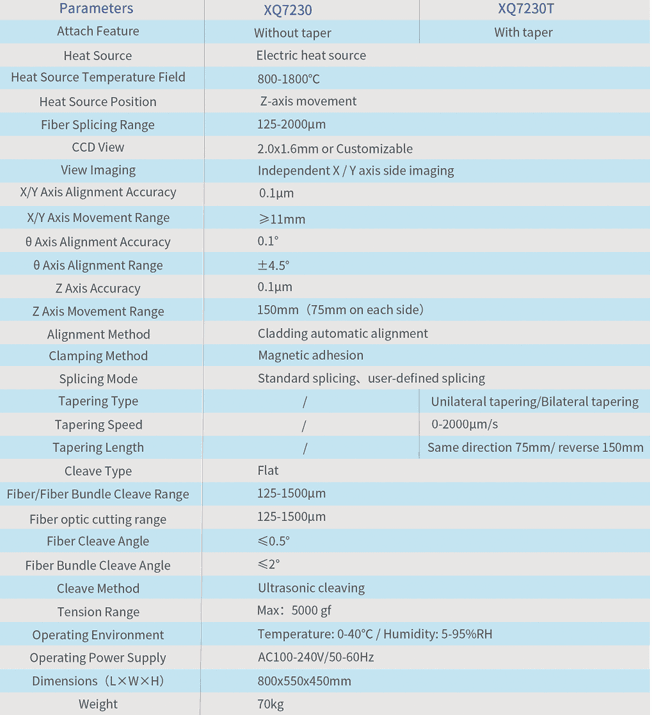

Technical Specifications
| Heat Source | Electric heat source |
| Heat Source Temperature Field | 800–1800°C |
| Heat Source Position | Z-axis movement |
| Fiber Splicing Range | 125–2000μm |
| CCD View | 2.0x1.6mm or Customizable |
| View Imaging | Independent X / Y axis side imaging |
| X/Y Axis Alignment Accuracy | 0.1μm |
| X/Y Axis Movement Range | ≥11mm |
| Z Axis Accuracy | 0.1μm |
| Z Axis Movement Range | 150mm (75mm on each side) |
| Fiber Bundle Cleave Range | 125–1500μm |
| Fiber Cleave Angle | ≤0.5° |
| Operating Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Operating Power Supply | AC100–240V / 50–60Hz |
| Dimensions (L×W×H) | 800×550×450mm |
| Weight | 70kg |
