Mini Large Diameter Fiber Splicer (XQ7260B)
XQ7260B is a mini large-diameter fiber splicer designed independently by OSCOM Technology. Its size is more compact than the regular model. Its heat source is an electrode arc. It can splice quartz fiber and large-diameter fiber. Different specifications of optical fiber holders can be replaced to meet the splicing of fiber with different diameters.
Key Features
- Low splicing loss
- High splicing quality
- Artificial intelligence touch screen
- Visual fiber end face imaging system

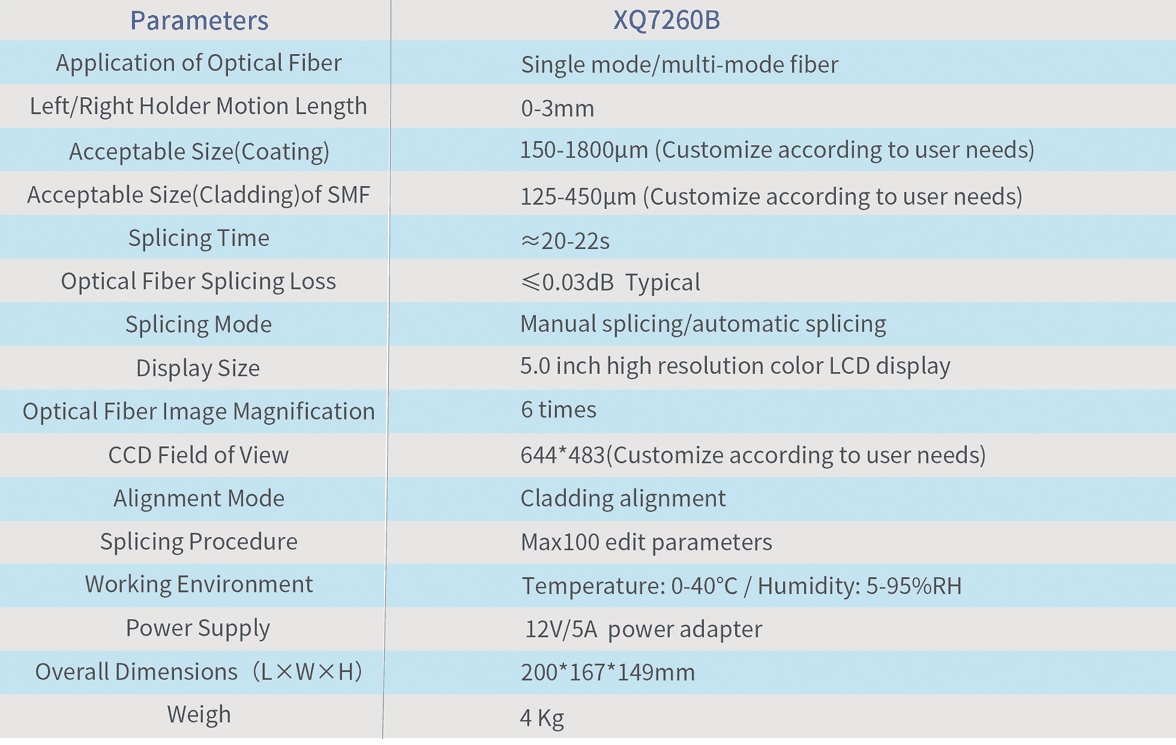

Technical Specifications
| Application of Optical Fiber | Single mode / multi-mode fiber |
| Left/Right Holder Motion Length | 0–3mm |
| Acceptable Size (Coating) | 150–1800μm (Customize according to user needs) |
| Acceptable Size (Cladding) of SMF | 125–450μm (Customize according to user needs) |
| Splicing Time | ≈20–22s |
| Optical Fiber Splicing Loss | ≤0.03dB Typical |
| Display Size | 5.0 inch high resolution color LCD display |
| Optical Fiber Image Magnification | 6 times |
| CCD Field of View | 644*483 (Customize according to user needs) |
| Alignment Mode | Cladding alignment |
| Splicing Procedure | Max 100 edit parameters |
| Working Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Power Supply | 12V/5A power adapter |
| Overall Dimensions (L×W×H) | 200*167*149mm |
| Weigh | 4 Kg |
