Multi-channel Test Light Source (XQ5160)
XQ5160 is a multi-channel high-stability test light source designed independently by OSCOM Technology. It utilizes DFB/LD laser as its emission source and integrates ATC and APC, RS232C communication control, etc. It can provide 6–18 (customizable) optional channel benchtop light source and its typical application wavelengths are CWDM 1270nm–1610nm or 1271–1611nm and DWDM ITU-T standard wavelength.
Key Features
- 6–18 channel configurable output
- DFB/LD emission source
- Automatic Temperature Control (ATC)
- Automatic Power Control (APC)
- RS232C communication interface
- Short-term stability <±0.005dB
Applications
- Optical fiber communication test
- optical fiber sensing test
- optical fiber device production
- optical module production
- automatic optical test system

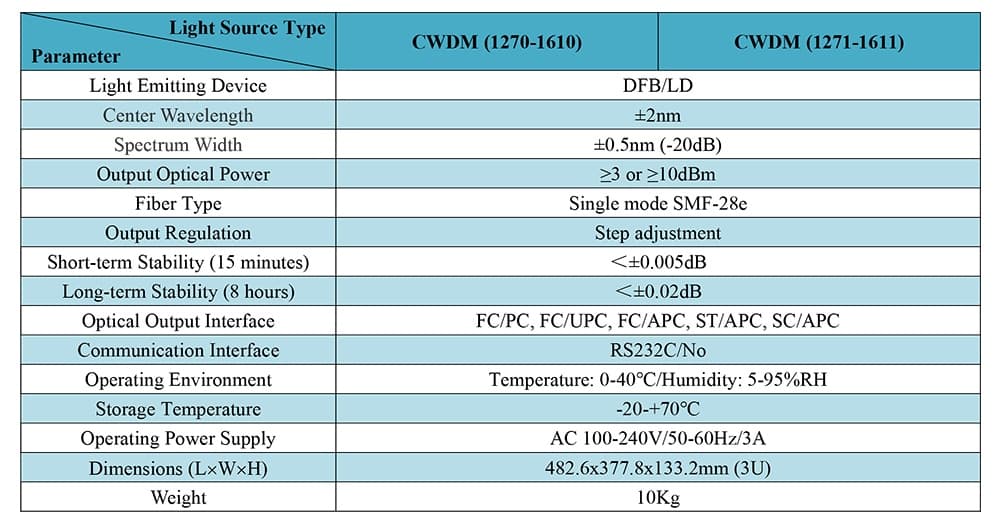

Technical Specifications
| Light Emitting Device | DFB / LD |
| Center Wavelength | ±2 nm |
| Spectrum Width | ±0.5 nm (-20dB) |
| Output Optical Power | ≥3 或≥10 dBm |
| Fiber Type | Single mode SMF-28e |
| Output Regulation | Step adjustment |
| Short-term Stability (15min) | <±0.005dB |
| Long-term Stability (8 hours) | <±0.02dB |
| Optical Output Interface | FC/PC, FC/UPC, FC/APC, ST/APC, SC/APC |
| Communication Interface | RS232C/No |
| Operating Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Storage Temperature | -20 – +70°C |
| Operating Power Supply | AC 100–240V / 50–60Hz / 3A |
| Dimensions (L×W×H) | 482.6x377.8x133.2mm (3U) |
| Weight | 10 kg |
