Polarization Maintaining Large Diameter Fiber Splicer (XQ7260C)
XQ7260C is a polarization-maintaining large-diameter fiber splicer designed independently by OSCOM. Its heat source is an electric arc. It can splice quartz fiber, polarization-maintaining fiber, and large-core fiber. XQ7260C adopts PAS side recognition and visual fiber end face image system, which can more easily observe the cleaving quality of fiber, and provide more accurate and faster alignment and splicing of PMF.
Key Features
- Low splicing loss
- High splicing quality
- Artificial intelligence touch screen
- Visual fiber end face imaging system
- PAS side identification

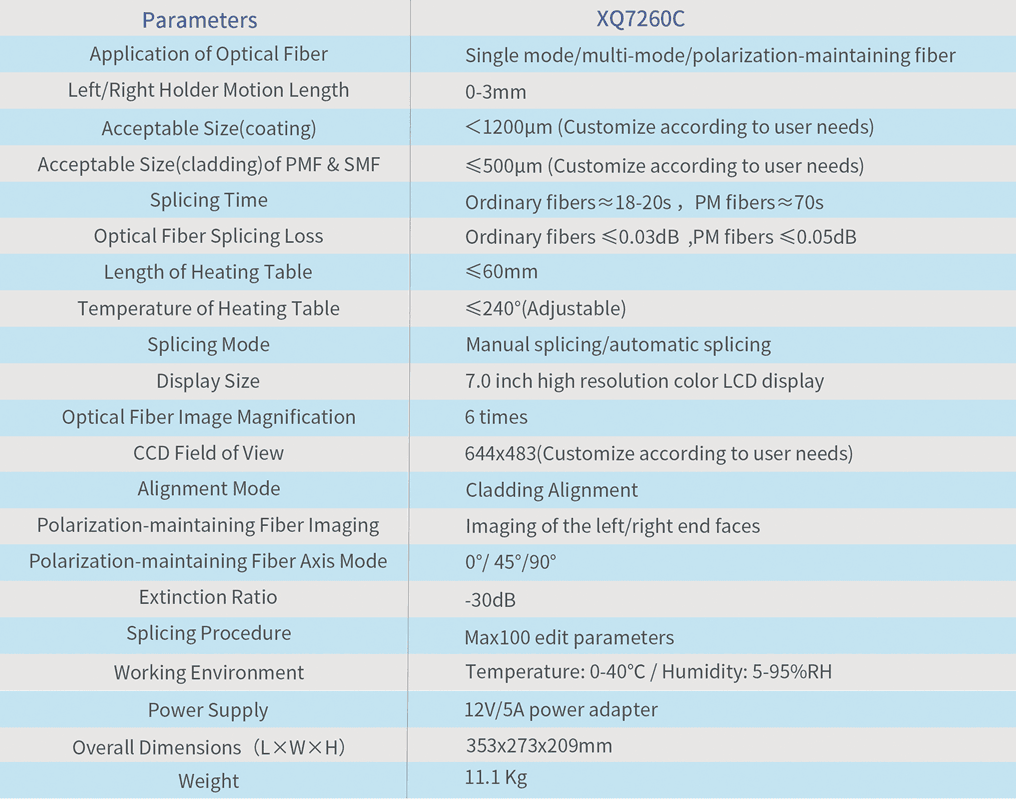

Technical Specifications
| Application of Optical Fiber | Single mode / multi-mode / polarization-maintaining fiber |
| Left/Right Holder Motion Length | 0–3mm |
| Acceptable Size (coating) | <1200μm (Customize according to user needs) |
| Acceptable Size (cladding) of PMF & SMF | ≤500μm (Customize according to user needs) |
| Splicing Time | Ordinary fibers ≈18–20s, PM fibers ≈70s |
| Optical Fiber Splicing Loss | Ordinary fibers ≤0.03dB, PM fibers ≤0.05dB |
| Length of Heating Table | ≤60mm |
| Temperature of Heating Table | ≤240° (Adjustable) |
| Display Size | 7.0 inch high resolution color LCD display |
| Optical Fiber Image Magnification | 6 times |
| PM Fiber Imaging | Imaging of the left/right end faces |
| PM Fiber Axis Mode | 0°/45°/90° |
| Extinction Ratio | -30dB |
| Alignment Mode | Cladding Alignment |
| Splicing Procedure | Max 100 edit parameters |
| Working Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Power Supply | 12V/5A power adapter |
| Overall Dimensions (L×W×H) | 353x273x209mm |
| Weight | 11.1 Kg |
