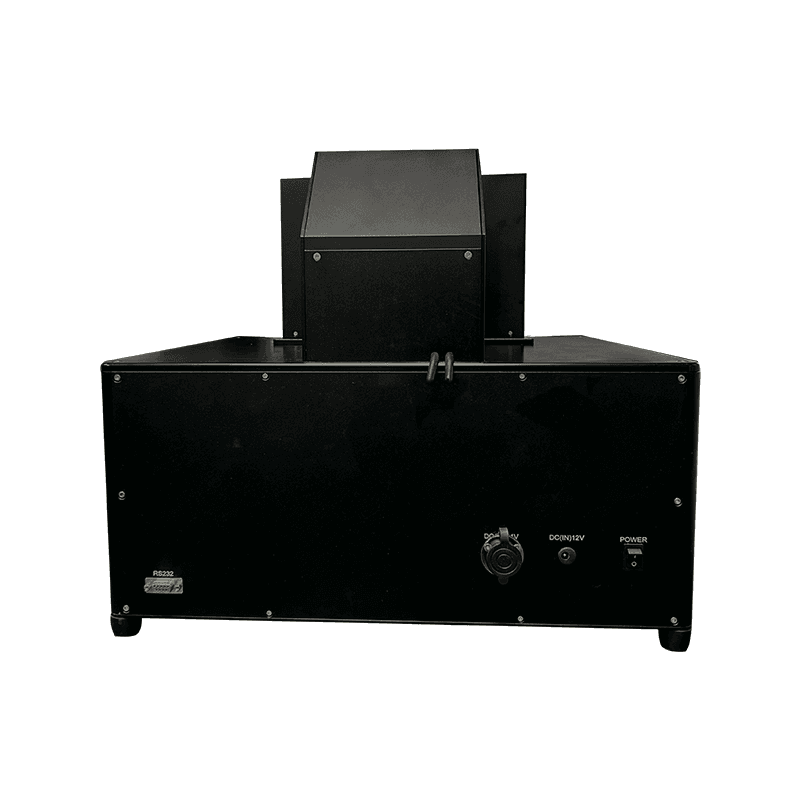

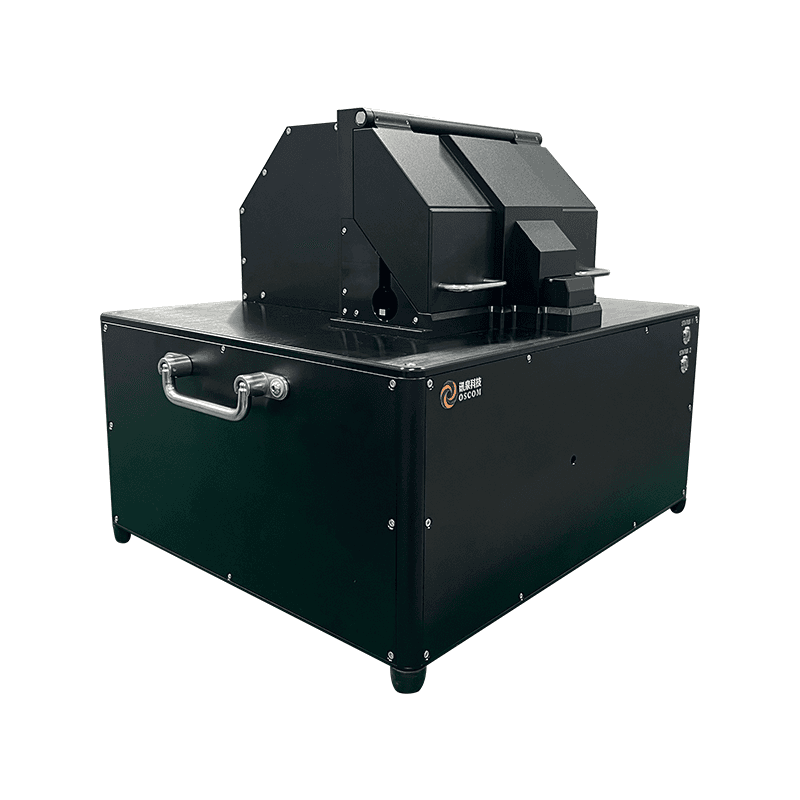

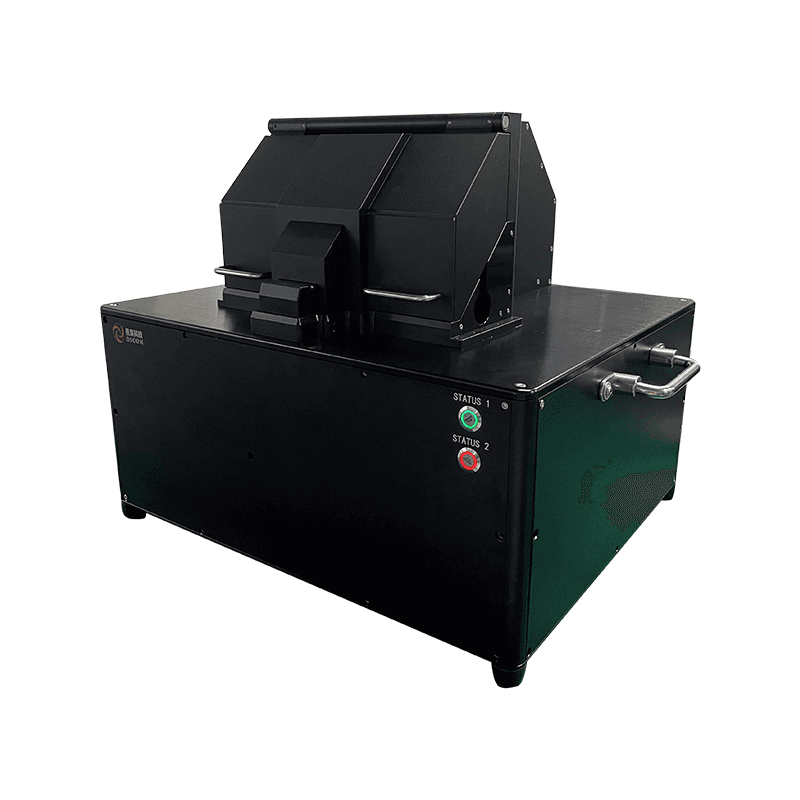

Small Special Fiber Splicer (XQ7230B)
XQ7230B is a small special fiber splicing system based on electric heat source, designed independently by OSCOM. The system is mainly used in the splicing process of various optical fiber products — making combiners, splicing fiber bundles, splicing coarse fibers, and splicing fibers and end caps. It can realize splices of 2x1, 3x1, 7x1, (6+1)x1, (18+1)x1, 19x1 combiner cone waists and output fiber. The accepted fiber size is Φ400m to Φ800m, customizable from Φ125m to Φ1200m.
Key Features
- Small form factor, more compact than XQ7230
- Electric heat source for stable splicing
- Wide fiber acceptance range (Φ125m–Φ1200m with customization)
- Supports multiple combiner configurations

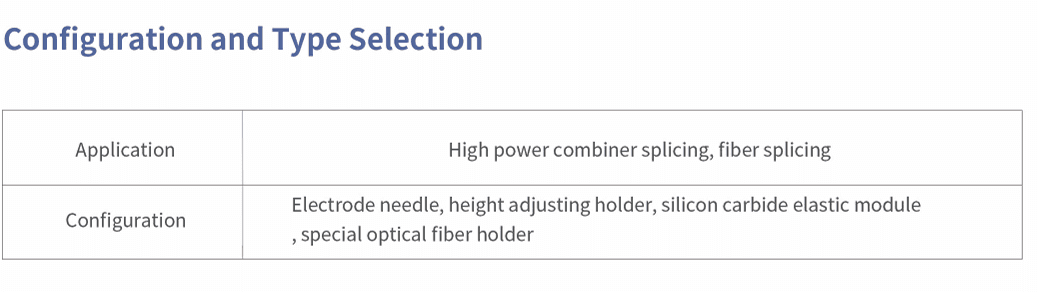

Applications
- High power combiner splicing
- fiber splicing

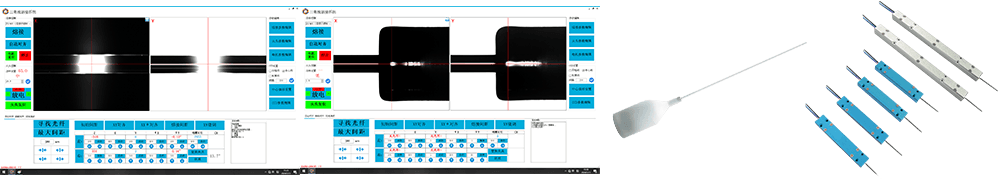

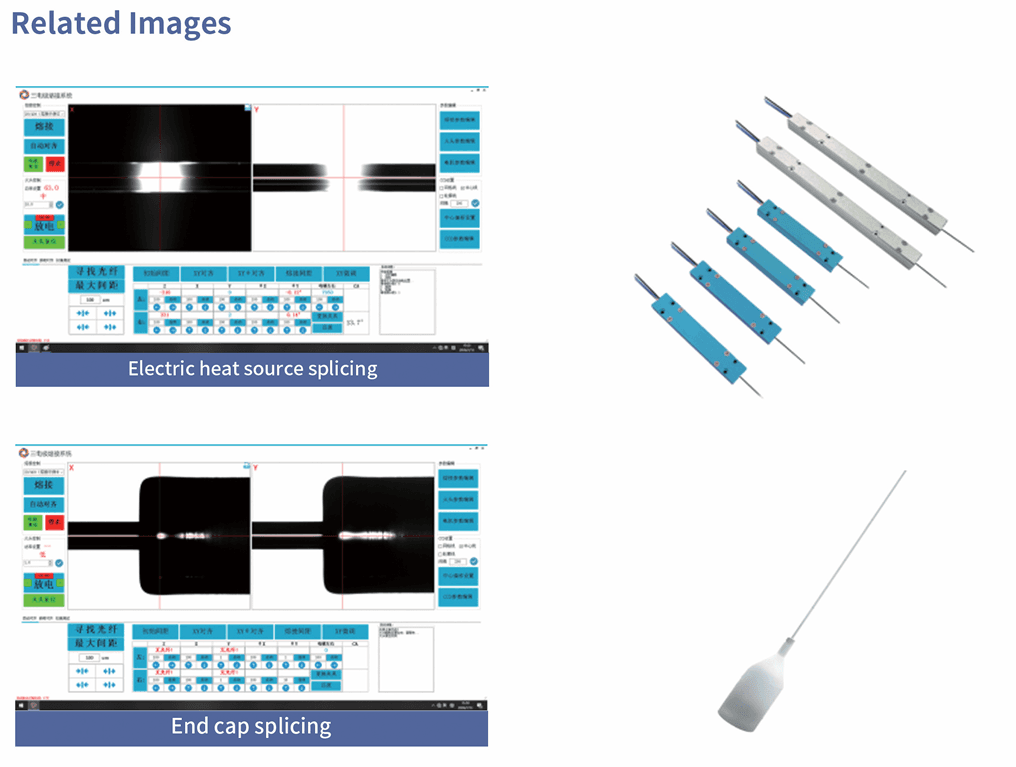

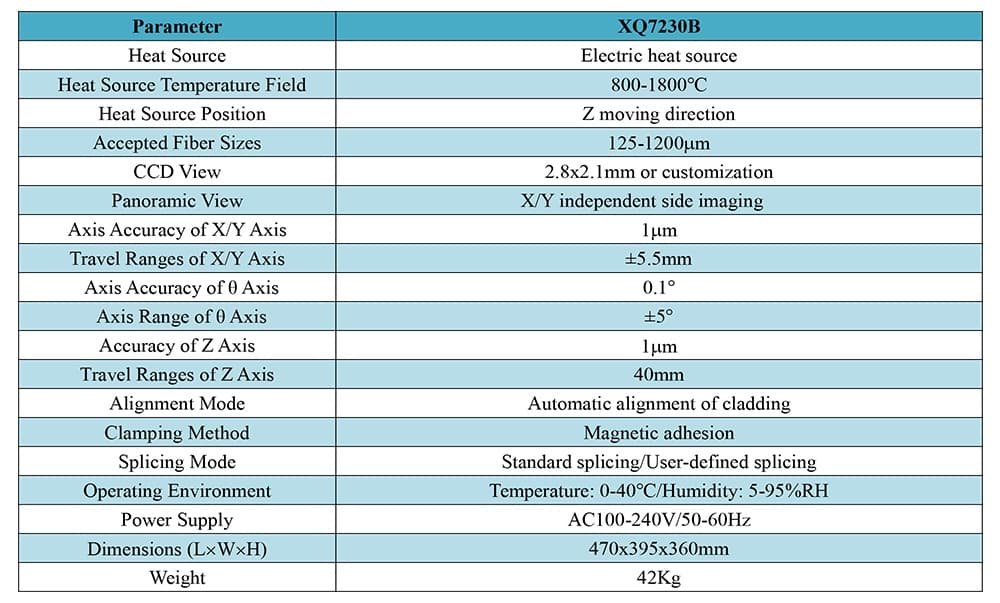

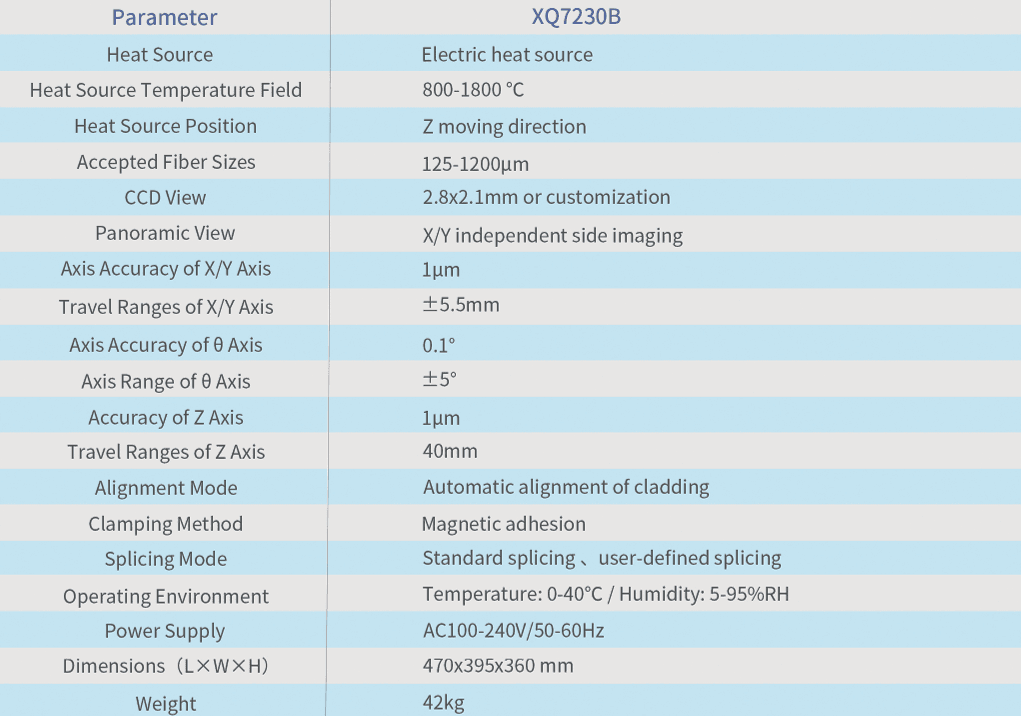

Technical Specifications
| Heat Source | Electric heat source |
| Heat Source Temperature Field | 800–1800°C |
| Heat Source Position | Z moving direction |
| Accepted Fiber Sizes | 125–1200μm |
| CCD View | 2.8x2.1mm or customization |
| Panoramic View | X/Y independent side imaging |
| Axis Accuracy of X/Y Axis | 1μm |
| Travel Ranges of X/Y Axis | ±5.5mm |
| Travel Ranges of Z Axis | 40mm |
| Alignment Mode | Automatic alignment of cladding |
| Splicing Mode | Standard splicing, user-defined splicing |
| Operating Environment | Temperature: 0–40°C / Humidity: 5–95%RH |
| Power Supply | AC100–240V / 50–60Hz |
| Dimensions (L×W×H) | 470×395×360 mm |
| Weight | 42kg |
